TP600 Coiling Wrapping Machine

Video Of Machine Working Process:

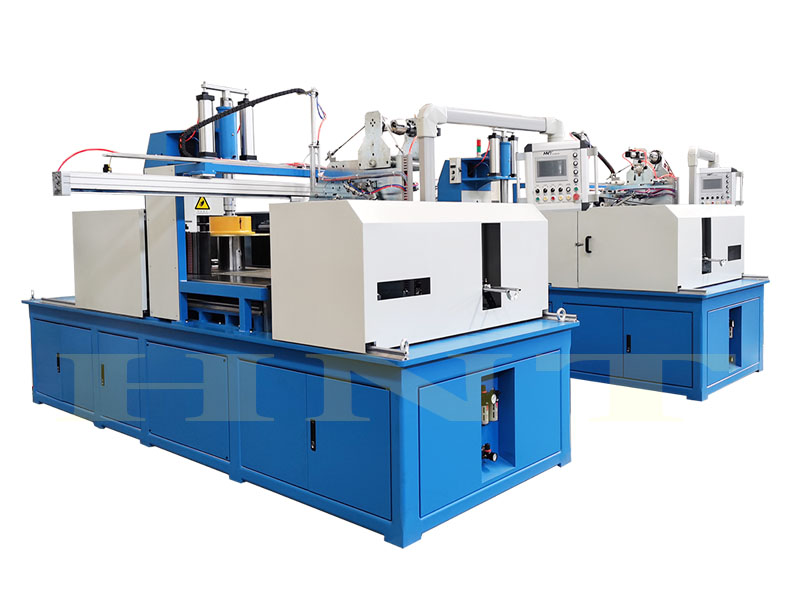

TP600 Cable Coiling & Wrapping Machine
Application: Used for making coiling of wire or cable diameter up to 50 mm

Technical parameters：

• Cable diameter: ф10mm²～ф50mm²。

• Line speed:120m/min

• Coil size: H:80-240m   OD:300-600mm  ID:180-320mm

• Bobbin size: ф800/1600

• Power capacity: 68kw

• Direction:depend on custome


Characteristic：

• wire feed by payoff or direct connect to extruder.

• Coil productive output is 4 time than by manual (take 200m coil for example).

• After coil, can be connected to packing by automatic Poly film wrapping machine and marked.

• If wrapping after coiling, the productive output is 7 time than manual.

• This machine use servo motor flat cable system. good for looking.

• Use touch screen type man-machine operation panel. easy to operate.

• Microcomputer can save 99 kinds different coil size, when you change production, just read the data saved to produce, no need to set the data again.

• This machine has automatic error detection function, when fault it will alarm.
