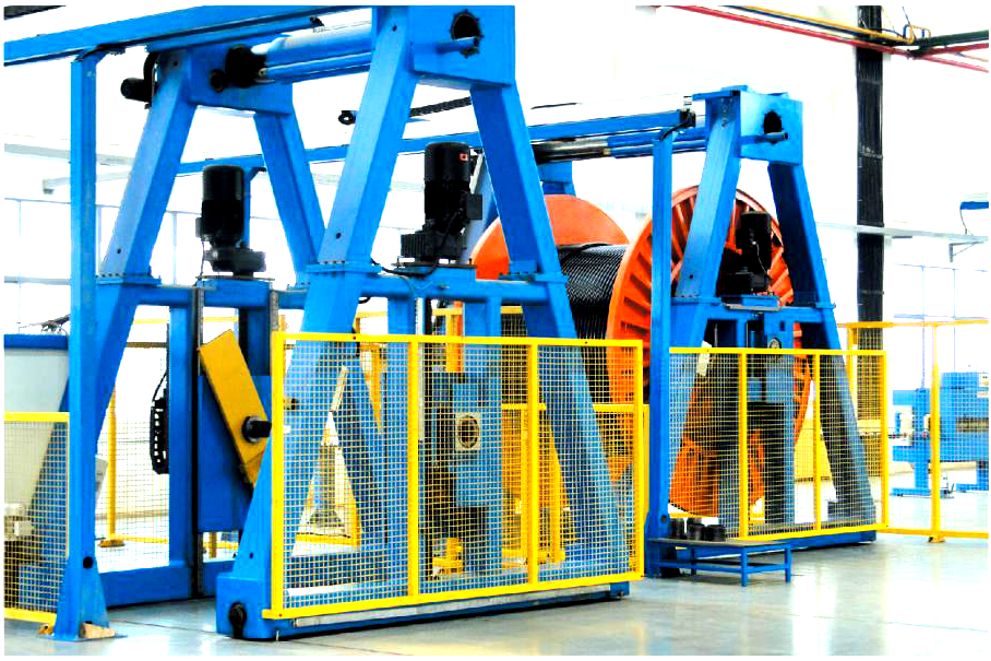

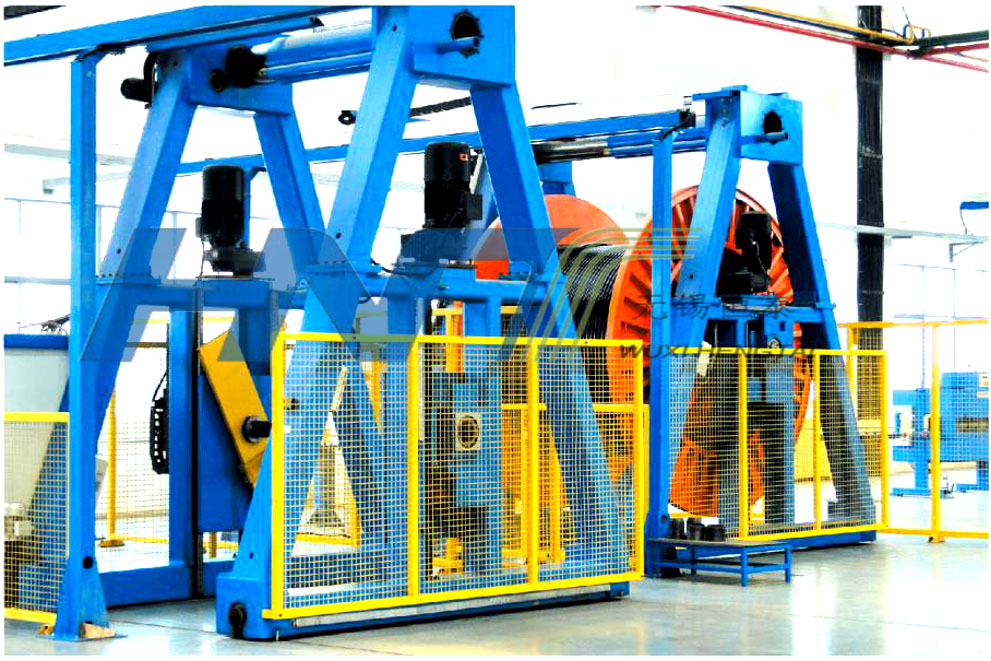

Technical Parameter:
Type | TUA25 | TUA32 | TUA36 | TUA42 | TUA50 |
Reel Dia. | 1250/2500 | 1600/3200 | 2000/3600 | 2500/4200 | 2500/5000 |
Max. Flange Dia.(mm) | 2500 | 3200 | 3600 | 4200 | 5000 |
Min Flange Dia.(mm) | 1250 | 1600 | 2000 | 2500 | 2500 |
Min Overall Width(mm) | 900 | 1180 | 1500 | 1900 | 1900 |
Max. Overall Width(mm) | 1900 | 2120 | 2300 | 2400 | 2500 |
Min. Barrel Dia.(mm) | 500 | 800 | 2500 | 2800 | 3000 |
Bore(mm) | 80(100-125) | 80(100-125) | 200 | 200 | 200 |
Min. Wire Dia. (mm) | 7 | 8 | 20 | 30 | 40 |
Max. Wire Dia.(mm) | 70 | 120 | 140 | 160 | 180 |
Max. Rotation Speed(RPM) | 7/17/37 | 7/17/37 | 6/12/22 | 6/12/22 | 6/12/22 |
Traverse range(mm) | 8-90 | 9-120 | 20-140 | 30-160 | 40-180 |
Max. Reel Weight(KG) | 12000 | 18000 | 25000 | 30000 | 40000 |
