1600 Cantilever Motorized Payoff

Product details

1600-Motorized-pay-off

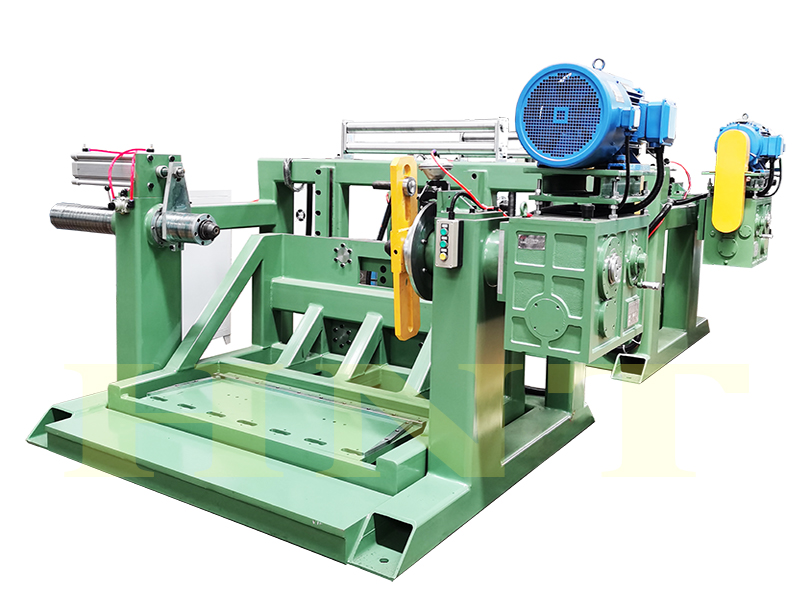

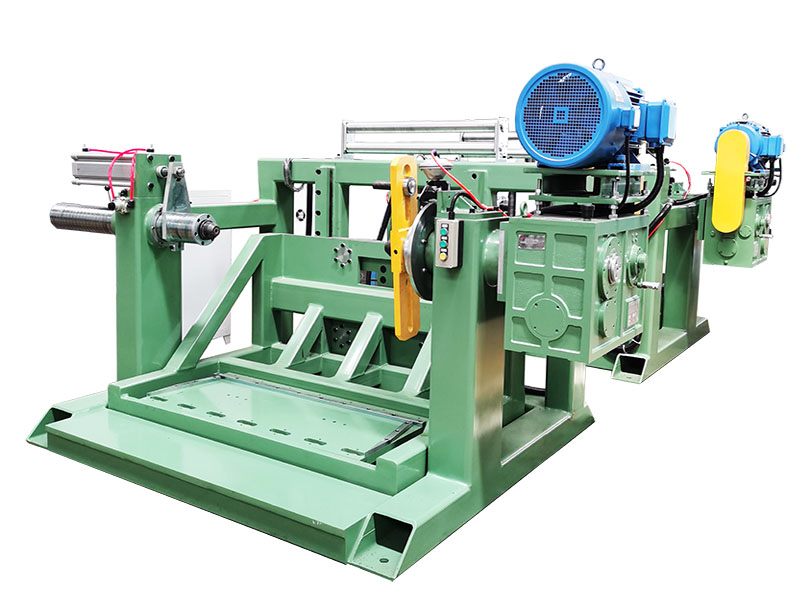

800/1600 Cantilever Motorized Payoff
Despriction:

800/1600 Cantilever Driven Pay-off application for wire and cable, optical cable production equipment. Machine with a separate control unit, which can be a self-contained system, it also can be used in the cable production line and can be widely used in steel wire, copper wire pay-off and other reinforcing parts pay-off. Its characteristics are light structure, scientific and reasonable design, simple operation, convenient maintenance, stable and reliable operation

Main technical parameter:

Model	800/1600
Bobbin Width range (mm)	800-1600
Application Bobbin width	600-1180
Application bobbin weight (T)	4
Max. Payoff Speed	250m/min
Single Wire Tension	50-3000N
Payoff Motor	YVP180M-4-B3 18.5Kw
Pay-off gearbox	BSYK170(10.56\22.04\44.86)
Lifting Motor	Y100L-4-3kw-B5
Lifting reducer	RV110-60-3kw
Air pressure disc brake	DBG204
Dimensions	3600×2020×1800
