Galvanized Steel Wire for ACSR

Product description

Galvanized Steel Wire is widely used in ACSR conductors and grounding conductors.

Product details

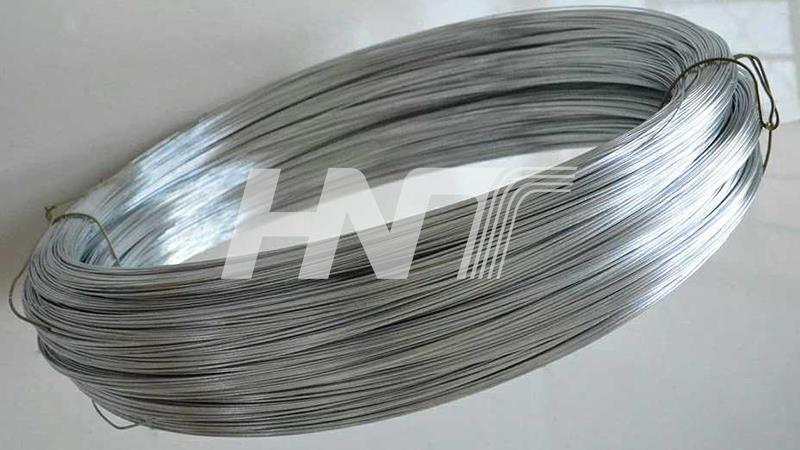

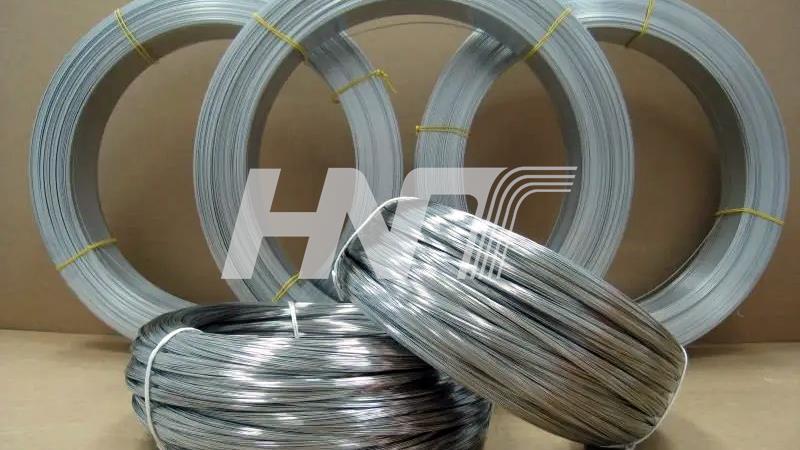

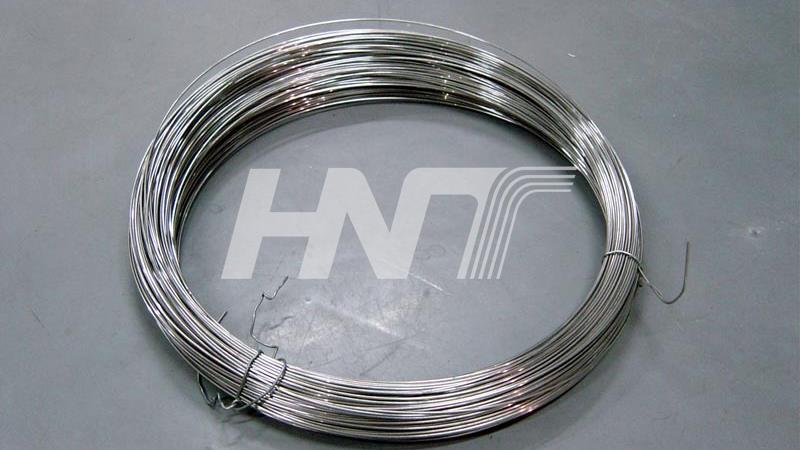

Galvanized Steel Wire for ACSR

1. Application

Galvanized steel wire for ACSR, can be supplied in single wire or in stranded wire. The galvanized steel core wire is used as the reinforcement for the aluminum conductor. The steel core adds strength and durability to the conductor, while the aluminum core ensures that it is still lightweight and easy to work with.

2. Physical Properties:

The surface of galvanized steel wire is smooth, bright and clean, without cracks, knots, burrs, scars, and rust;
The galvanized layer is uniform, with strong adhesion and long-lasting corrosion resistance;

Excellent toughness and elasticity. The tensile strength should be between 900Mpa-2200Mpa (wire diameter Φ0.2mm-Φ4.4mm). The number of twists (Φ0.5mm) should be more than 20 times, and the number of repeated bending should be more than 13 times.

The thickness of the hot-dip zinc layer is 250g/m. Greatly improved the corrosion resistance of steel wire.

3. Standard

ASTM B498, BS 1052, AS 3607.

4. Specification & Parameter ASTM B 498 CLASS A

Nominal DiameterMm	Tensile Strength min Mpa	Stress at 1% Extension Mpa	Elongation in 250mm min%	WrapTest,V≤15turns/min,D=2d min TURNS	Zinc Coating, gram/㎡,Min	Tolerance mm
						+	-
1.60＜d≤1.90	1450	1310	3.0	8	210	0.04	0.03
1.90＜d≤2.30	1450	1310	3.0	8	220	0.04	0.03
2.30＜d≤2.70	1410	1280	3.5	8	230	0.05	0.05
2.70＜d≤3.05	1410	1280	3.5	8	240	0.05	0.05
3.05＜d≤3.10	1410	1240	4.0	8	240	0.08	0.05
3.10＜d≤3.50	1410	1240	4.0	8	260	0.08	0.05
3.50＜d≤3.60	1410	1240	4.0	8	270	0.1	0.05
3.60＜d≤3.90	1380	1170	4.0	8	270	0.1	0.05
3.90＜d≤4.50	1380	1170	4.0	8	275	0.1	0.08
4.50＜d≤4.80	1380	1170	4.0	8	300	0.1	0.08

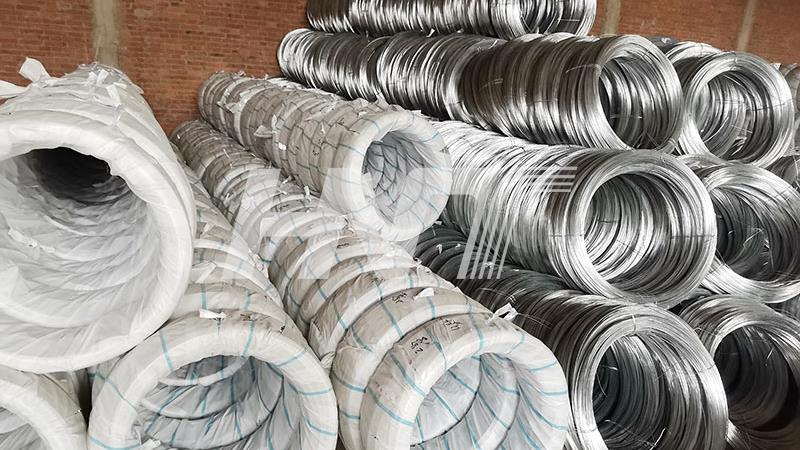

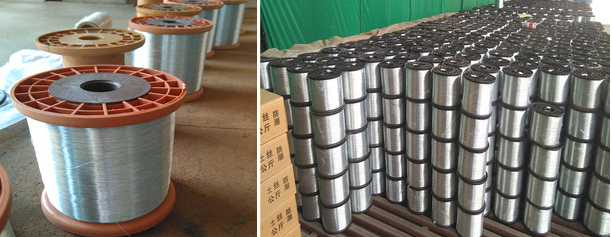

5. Packing and Shipping:

Galvanized Steel Wire for ACSR
