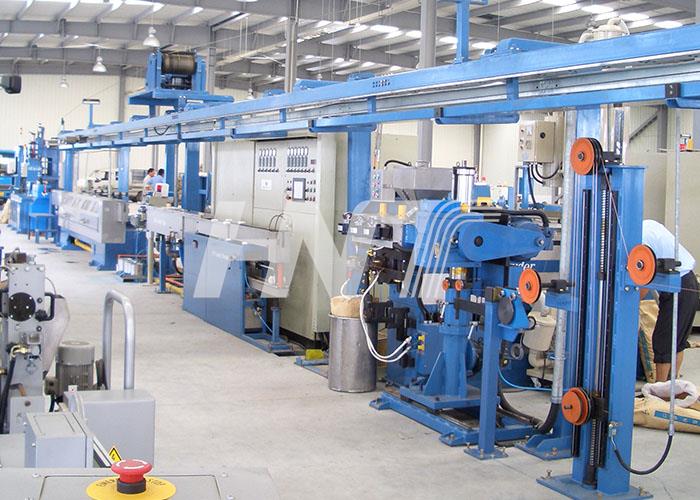

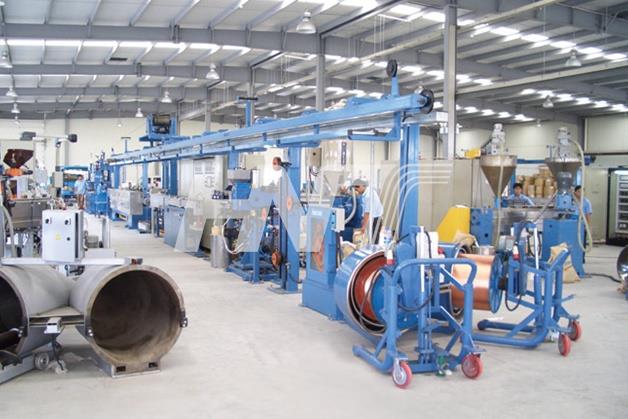

Automotive Wire Extrusion Line

Automotive Wire Extrusion Line：

Description:

Suitable for described properties,PE,PVC,PU,such as plastic wire about cars,high-speed extrusion insulation.

Technical Parameter:

Machine Type	Ф65 + Ф35	Ф70 + Ф40	Ф80 + Ф40
Screw Diameter	Ф65mm	Ф70mm	Ф80mm
L/D Ratio	27:1	27:1	26:1
Screw Speed	110rpm	110rpm	100rpm
Extruder Power	22kW	37kW	55kW
Extrusion Capacity	170kg/hr	220kg/hr	300kg/hr
Finished Wire Outer Dia.	Ф 1-7mm	Ф 1-7mm	Ф 1-7mm
Control Mode	Industrial computer + PLC
Line Speed	700m/min (max)	800m/min (max)		1000m/min (max)
Pay-off	Lut barrel pay-off	Lut barrel pay-off		Lut barrel pay-off
Cooling Type	Enclosed spray	Enclosed spray		Enclosed spray
Capstan Type	Double wheel sealed	Double wheel sealed		Double wheel sealed
Accumulator	Precision horizontal / 18m	Precision horizontal / 20m
Take-up	Automatic coiling machine			NPS take-up machine
Diameter measuring instrument	Domestic or imported
High-frequency spark tester	Domestic or imported
Wire diameter control precision	±0.02mm

Line Take-up Method:
Take-up-machine
