Building Wire Extrusion Line

Product details

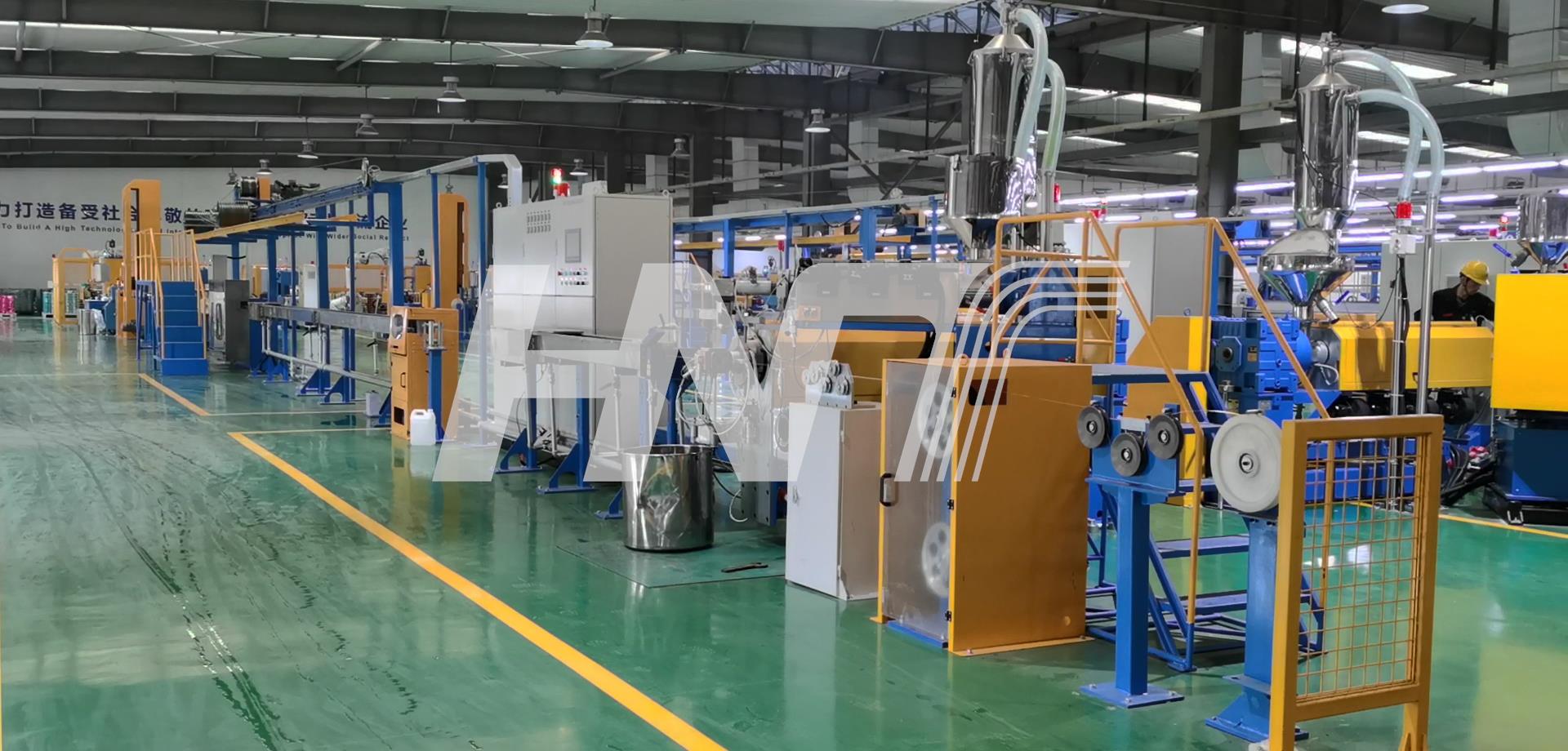

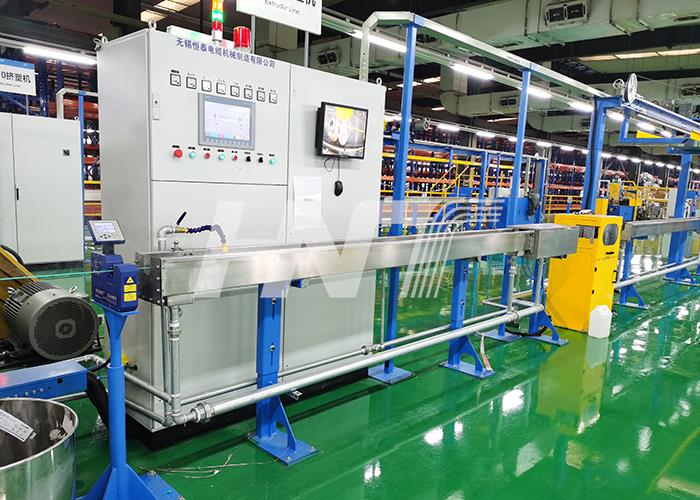

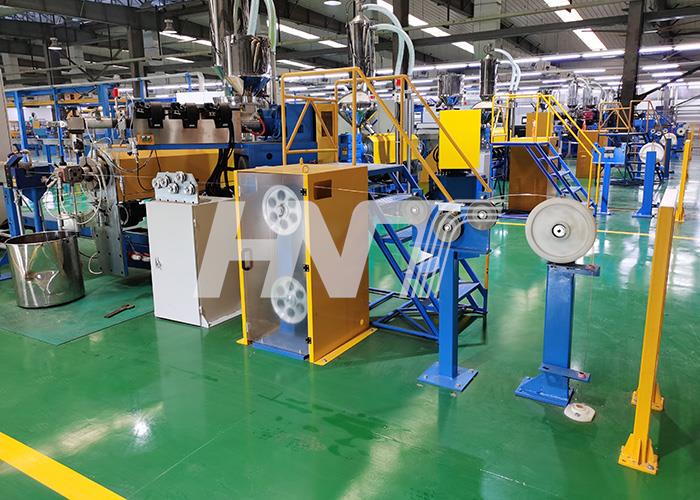

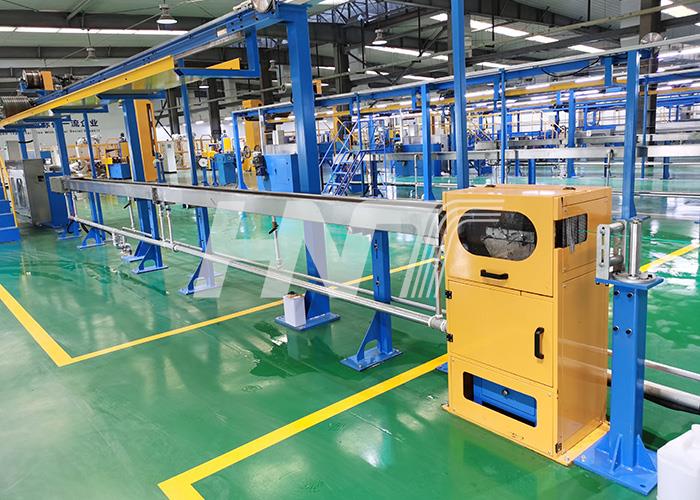

φ70mm Building Wire Extrusion Line

1. Specific screws and barrels can be chosen to match the material for extrusion, such as PVC, PE, LDPE, LSNH, Teflon, Nylon and etc.

2. The extrusion crosshead can be selected from ceter-adjusted or adjustless, with strip color, skin color and double layer extrusion function.

3. Temperature control adopt Japan RKC series.

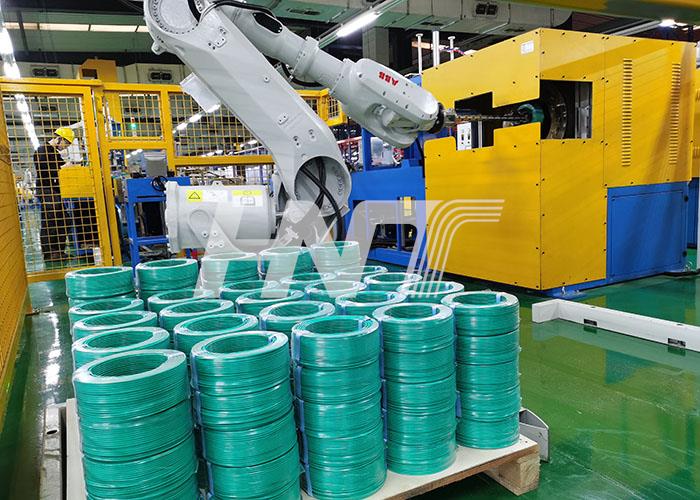

4. There are several types of cable take-up, such as automatic dual take-up, standard takeup, automatic cable coiling and wrapping, or robot palletizing systems.

5. According to different take-up, the line speed of different, Max. is 1000m/min.

Extruder Technical parameter:

Model Type	Screw parameter			Max Extrude capacity (kg/hr)			Finished Outer Diameter (mm)
Model Type	Diameter(mm)	L/D	Speed(RPM)	PVC	LDPE	LSNH	Finished Outer Diameter (mm)
EX-40G	40	26:1	120	24	14		0.8-3
EX-50G	50	26:1	120	60	35		1-6
EX-60G	60	26:1	120	100	60	22	2-8
EX-70G	70	26:1	120	160	130	36	3-15
EX-80G	80	26:1	110	220	180	48	5-20
EX-90G	90	26:1	100	310	240	65	8-25
EX-100G	100	25:1	90	400		90	10-30
EX-120G	120	25:1	90	550			15-40
EX-150G	150	25:1	60	900	550
EX-200G	200	25:1	60	1300	1100	750

Extrusion Function:

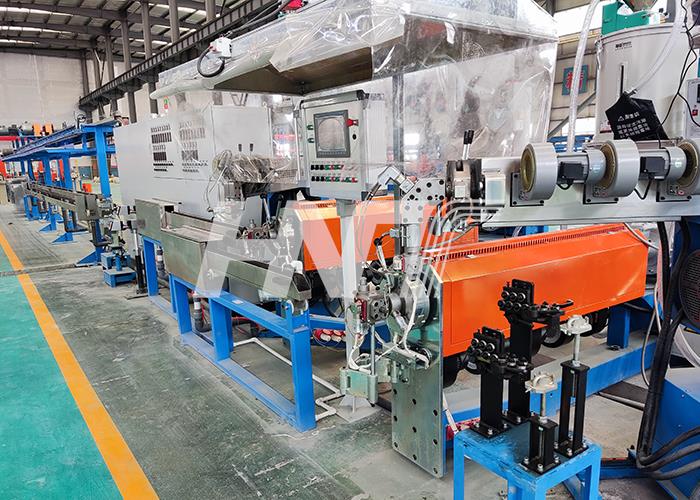

Extruder

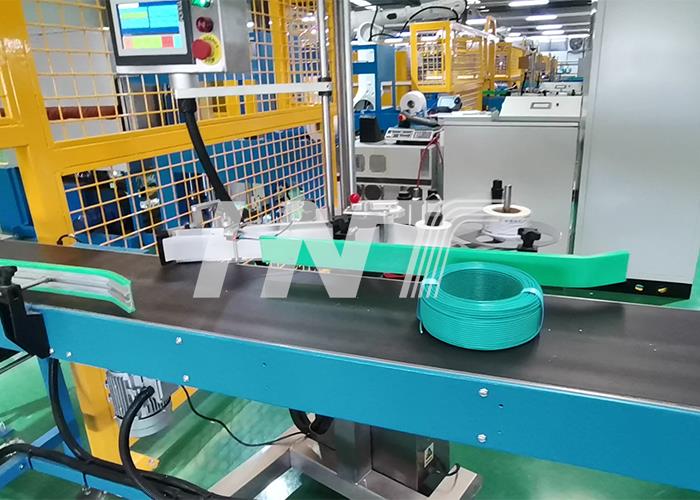

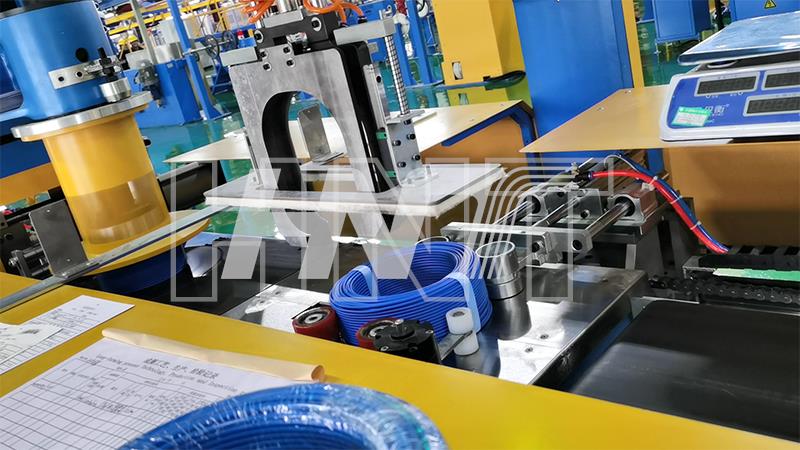

Line Takeup Method:

Video of Production Line

Our Customers:

Customers' Feedback:
