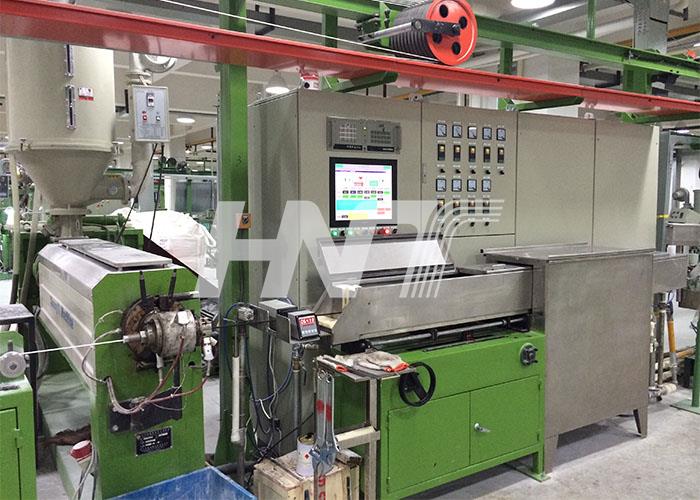

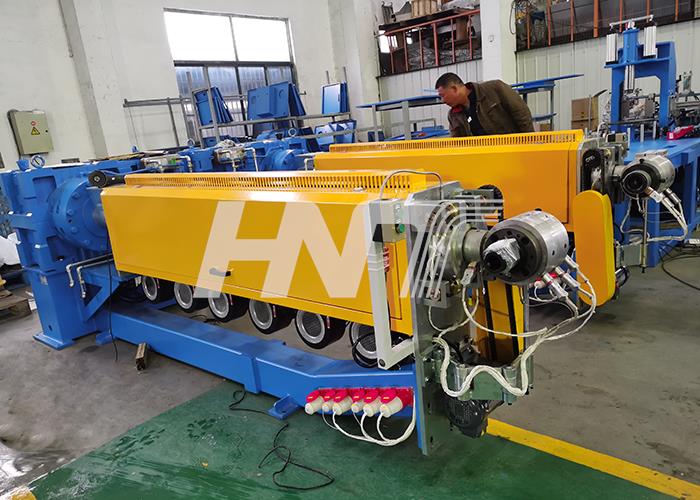

PV | Solar Cable Production Line
Equipment Application:
This equipment is mainly used for single-color and double-layer extrusion of Solar cable extrusion line for the materials XHFFR or XLPO. The wire ranges from 1.5mm² to 16mm²， Extrusion Material can be XHFFR, XLPO,PE, XLPE.
Technical Information:
| Item | PV cable extrusion machine | ||
| Machine Type | Φ70 | Φ90 | Φ80 +Φ90 |
| Screw Diameter | Φ70mm | Φ90mm | Φ80mm + Φ90mm |
| L/D Ratio | 25:1 | 25:1 | 25:1 |
| Screw Speed | 110rpm | 110rpm | 100rpm |
| Extruder Power | 37kW | 75kW | 55kW + 75kW |
| Extrusion Capacity | 140kg/hr | 350kg/hr | 350kg/hr |
| Finished Wire Outer Dia | Φ1-7mm | Φ1-7mm | Φ1-20mm |
| Control | Touch screen + PLC | ||
| Line Speed | 300m/min (max) | 300m/min (max) | 200m/min (max) |
| Extrusion crosshead | U7 fixed centering | U7 fixed centering | X20 adjustable |
| Pay-off | Active pay off or tension pay off | ||
| Cooling | Water immersion cooling | ||
| Capstan | Double-wheel capstan | Double wheel or belt type capstan | |
| Accumulator | Horizontal / 12m | Horizontal / 12m | Horizontal / 12m |
| Take-up | Twin screw take-up machine | ||
| Diameter measuring instrument | Domestic or imported | ||
| Spark tester | Domestic or imported | ||
| Wire diameter control precision | ±0.02mm | ||

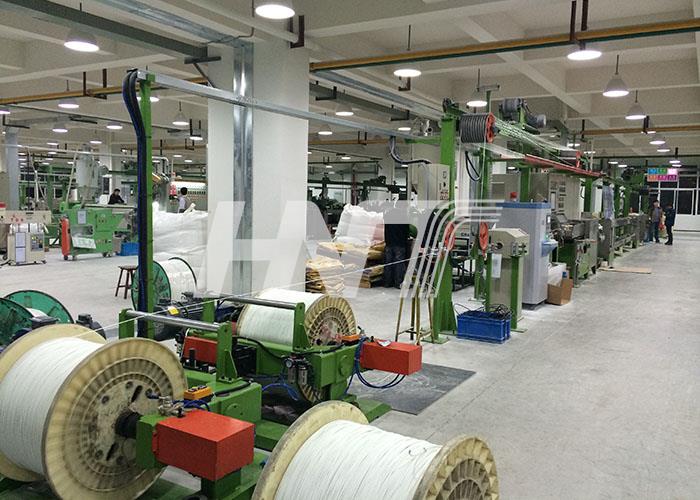

Line Takeup Method:

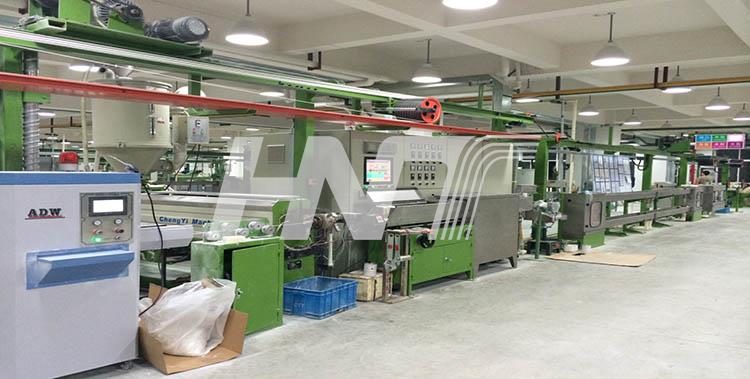

Customer:
