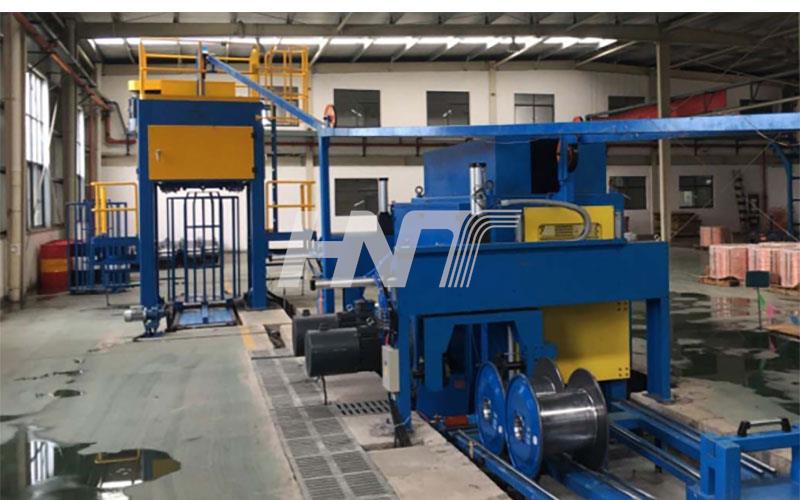

Aluminum Rod Breakdown Machine

Aluminum Rod Breakdown Machine

An aluminum rod breakdown machine is a machine that draws aluminum wire from aluminum rods:

Purpose: Produces aluminum wires from aluminum rods

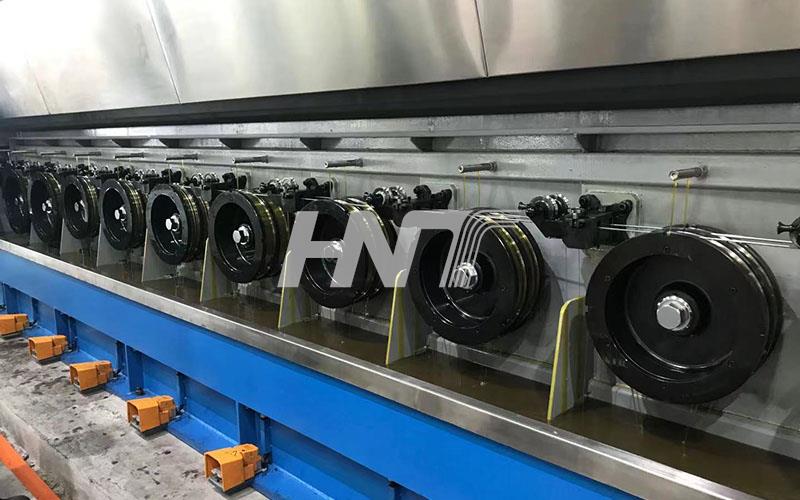

How it works: Uses a series of drawing capstans to draw the wire

Applications: The wire produced can be used in high-voltage cables, offshore installations, and deep-sea cables

Types: Rod breakdown machines can be the wet slip, stepped, or single capstan-type

Here are some examples of aluminum rod breakdown machines:

High-speed aluminum rod breakdown machine: Can draw aluminum wire from 9.5 mm to 1.7–4.8 mm and 2.5–4.2 mm

Aluminum rod breakdown machine with individual motors: Can produce aluminum wires from 9.5 mm aluminum rods or aluminum alloy rods

High-quality aluminum rod breakdown machine: Uses an advanced electric control system to coordinate the production line

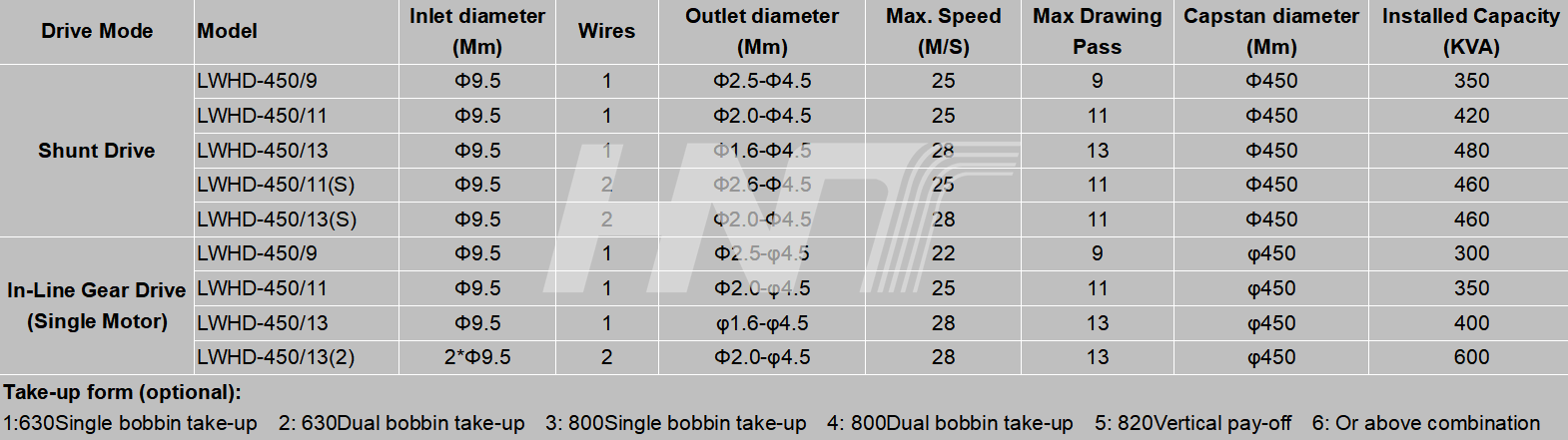

Technical Parameters:
