Basket Payoff:


Overview

A basket payoff is a type of cable or wire unwinding system designed to handle large, heavy coils without requiring a traditional spool or reel. Instead, the cable is stored in a **freestanding basket-like structure, allowing for smooth, tangle-free unwinding.


How It Works

Design:

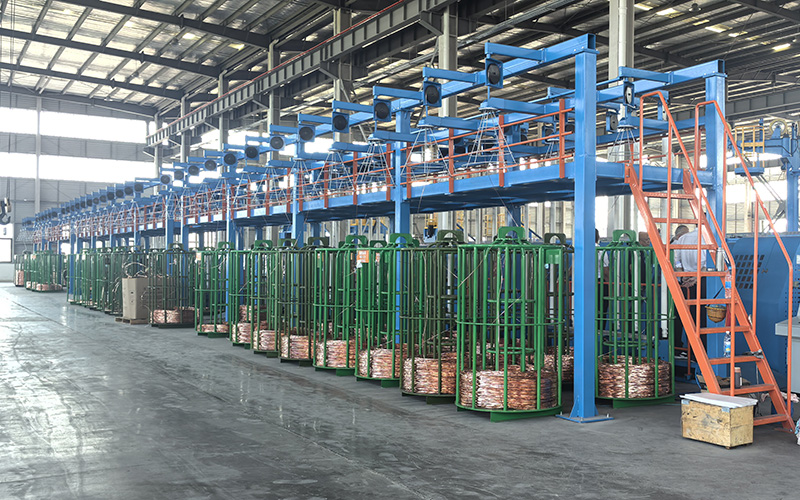

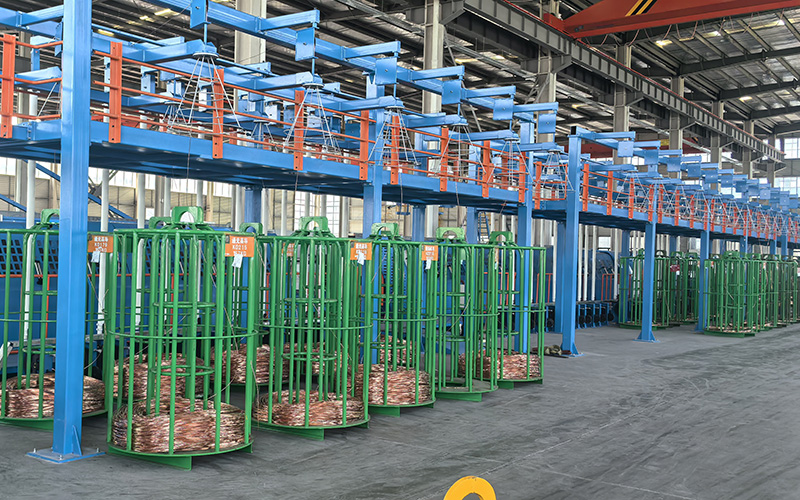

   - The basket payoff consists of a **rotating circular frame** (often made of steel) that holds a looped coil of wire or cable.

   - The cable is fed upward or sideways through a guide system.

   - Some models include **motorized rotation** for controlled unwinding.


Operation:

   - The cable is pulled from the center of the coil (like unwinding a roll of tape).

   - As tension is applied, the basket rotates to release the cable smoothly.

   - Braking systems or tensioners prevent over-spinning.


Advantages of Basket Payoffs

   - No Need for Reels:** Saves cost and hassle of transferring cable to spools.

   - Handles Heavy Coils:** Ideal for thick, large-diameter cables (e.g., power cables, welding wire).

   - Minimizes Tangling: Cable unwinds naturally without twisting.

   - Space-Efficient: Takes up less room than reel-based systems.


Common Applications

   - Power Cables: Unwinding high-voltage cables for installation.

   - Welding Wire: Feeding wire in automated welding systems.

   - Telecom & Fiber Optics: Deploying long-distance fiber cables.

   - Industrial Machinery: Supplying wire for CNC machines, wire drawing, etc.


Best Practices

   - Ensure Proper Alignment– Guides should prevent snags.

   - Control Tension – Use brakes or sensors to avoid slack or over-pulling.

   - Inspect Coils– Avoid kinks or knots before loading into the basket.
