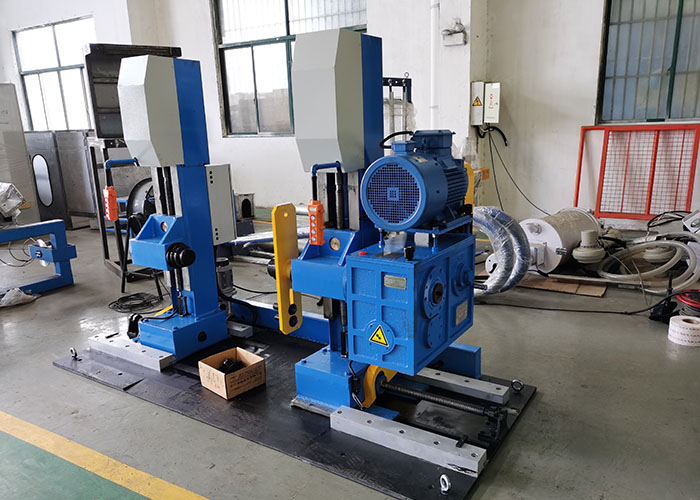

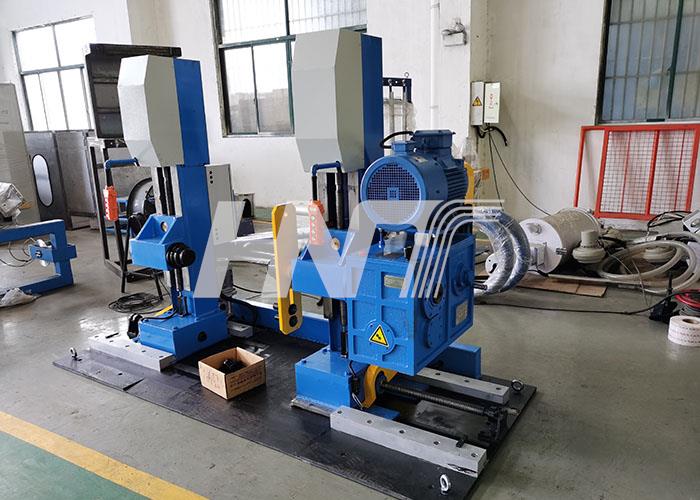

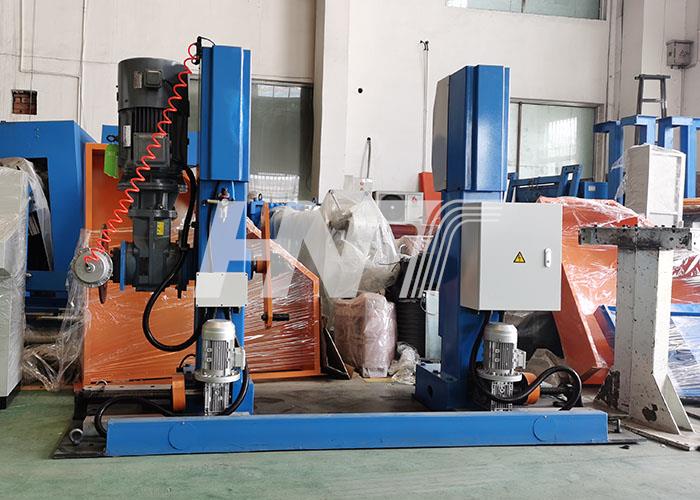

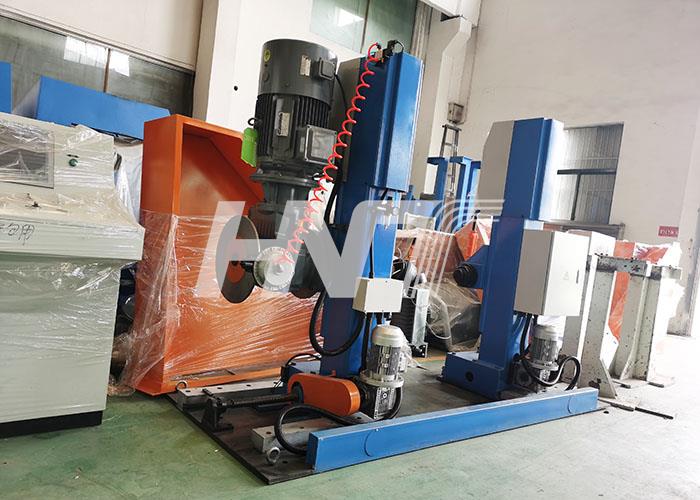

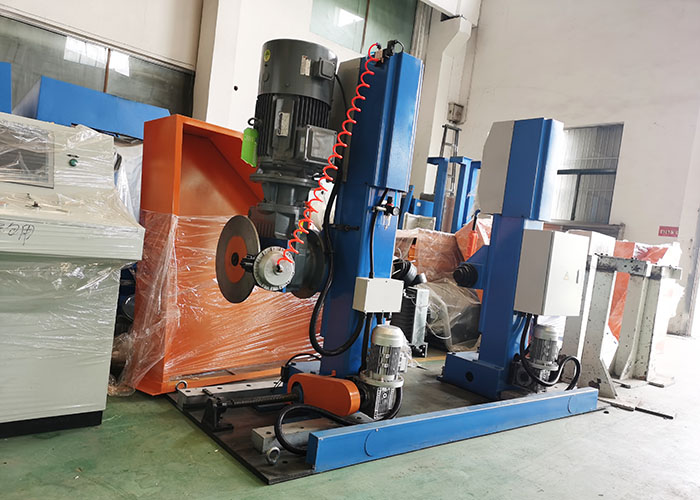

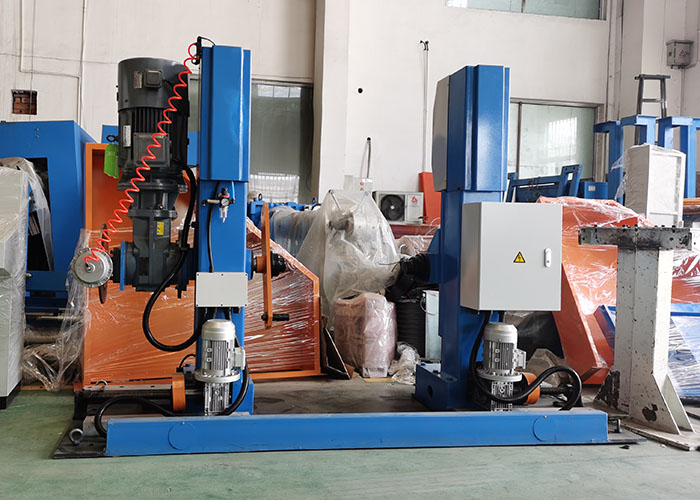

Fixed Type Payoff φ1600mm

Fixed Type Payoff φ1600mm:

1. Mainly used for the Payoff of plastic extrusion units, high-frequency welding machines and other cable equipment.

2. Application Bobbin:PN800-PN1600

3. Width of Bobbin: 500-1000mm

4. Bobbin Main shaft lifting range: 350-850mm

5. Reel lifting range: 0.6M/Min

6. Payoff speed: 4-100M/Min

7. Max. Loading: 6T

7. The loading and unloading method of the Payoff reel is a portal walking structure.

8. The two pintles of the reel are driven up and down by two motors through a cycloidal pinwheel reducer.

9. Equipped with mechanical protection and electrical protection devices. It is very convenient to load and unload the spool.
10. Machine size can be made according to customer's requirements.
