Portal type Movable Payoff and Takeup

Product details

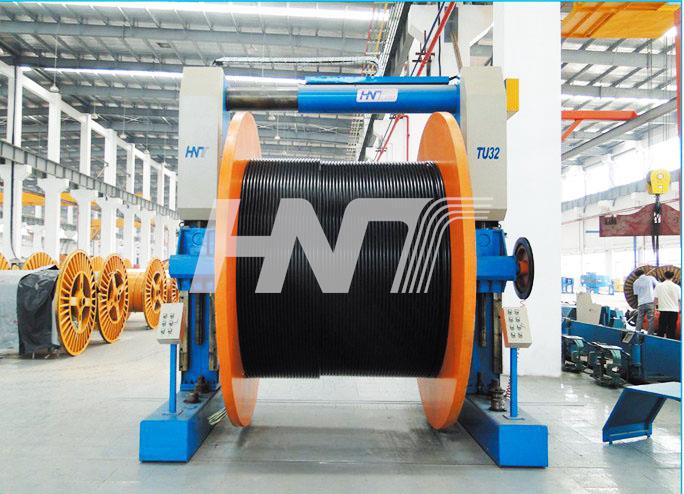

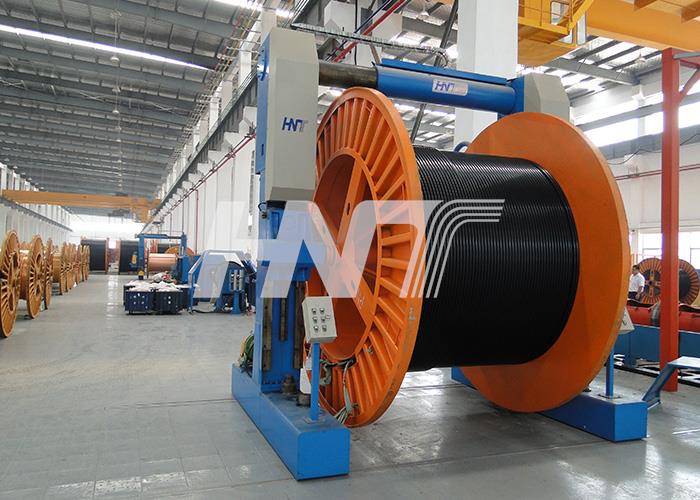

Portal type Movable Payoff and Takeup

1. Loading and unloading method is a portal movable structure,
2. The pintle of the reel are driven by two motors via a cycloidal pinwheel reducer, each of the pintle can be lifted separately or simultaneously.
3. It is equipped with mechanical protection and electrical protection devices and with accessories pintle design to meets the installation of different specifications of the bobbin;
4. Bobbin clamping is realized by the motor, and it is equipped with mechanical protection and electrical protection device.
5. Loading and unloading of the bobbin is very convenient.

Technical Parameter:

Type	TU16	TU20	TU25	TU32	TU36
Reel Dia.	850/1600	1000/2000	1250/2500	1600/3200	2000/3600
Max. Flange Dia.(mm)	1600	2000	2500	3200	3600
Min Flange Dia.(mm)	850	1000	1250	1600	2000
Min Overall Width(mm)	600	600	900	1180	1500
Max. Overall Width(mm)	1180	1500	1900	2120	2300
Min. Barrel Dia.(mm)	400	500	500	800	2500
Bore(mm)	80	80(100)	80(100-125)	80(100-125)	200
Min. Wire Dia. (mm)	4	5	7	8	20
Max. Wire Dia.(mm)	40	50	70	120	140
Max. Rotation Speed(RPM)	7/17/37	7/17/37	7/17/37	7/17/37	6/12/22
Traverse range(mm)	5-50	6-60	8-90	9-120	20-140
Max. Reel Weight(KG)	6000	8000	12000	15000	20000
