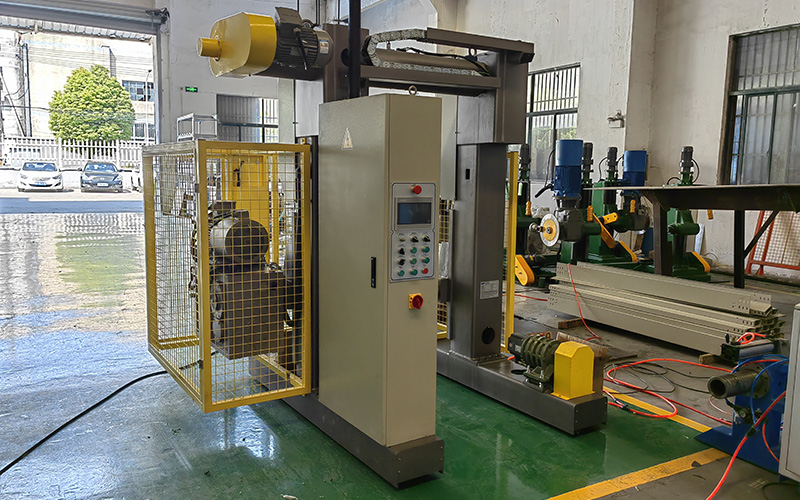

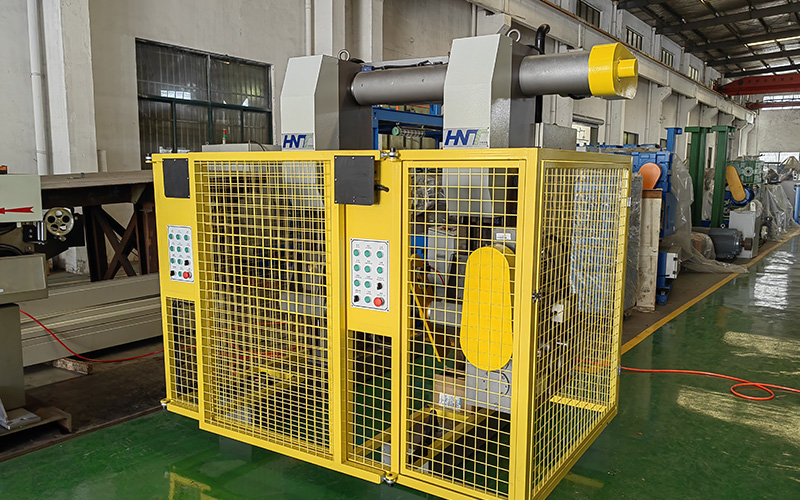

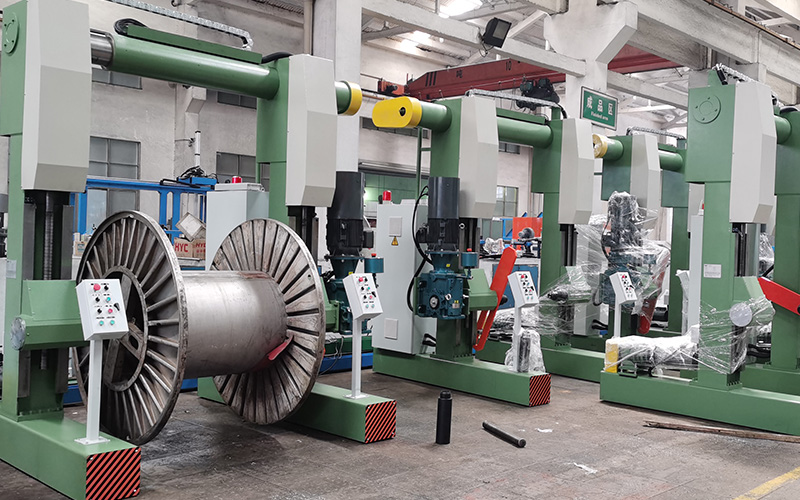

Upper Beam Type Take Up (Payoff)

Upper Beam Type Take Up (Payoff):

Loading and unloading method is a portal movable structure.

Cable Takeup and Payoff:

Refer to the processes of winding (takeup) and unwinding (payoff) cables or wires onto or from a spool, reel, or drum. These operations are critical in industries like power transmission, telecommunications, construction, and manufacturing, where long lengths of cable need to be stored, transported, or deployed efficiently.

The Take-up is the AC motor drive the gearbox to drive bobbin, and the gearbox is infinitely variable; Siemens 200 PLC+ imported Siemens governor is used to control the motor operation. The traverse pitch and bobbin information can be input in the control panel,PLC control with coil diameter calculation function can automatically control the tension and reverse direction. The motor drives the traverse to reduce the gear box and the guide wheel, to control the pitch of the traverse, and the gear box is directly connected to the traverse shaft;

2 method of the take-up control: torque control and speed control which can be manually switched.

Brake: with pneumatic butterfly brake, solenoid valve control.

Technical parameters

Customer feedback:
