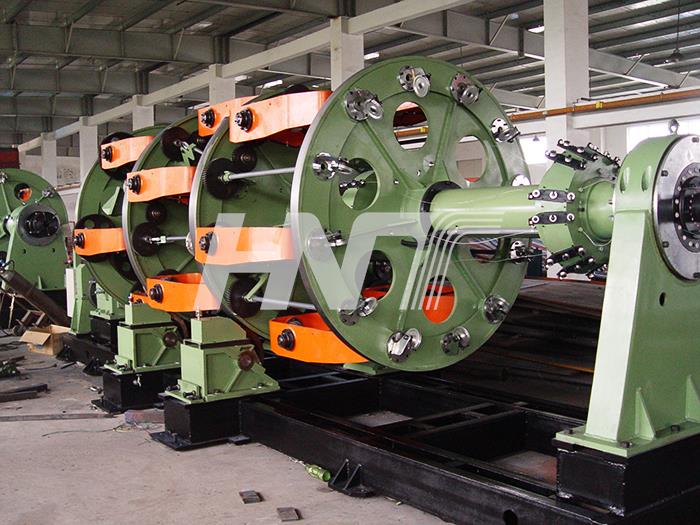

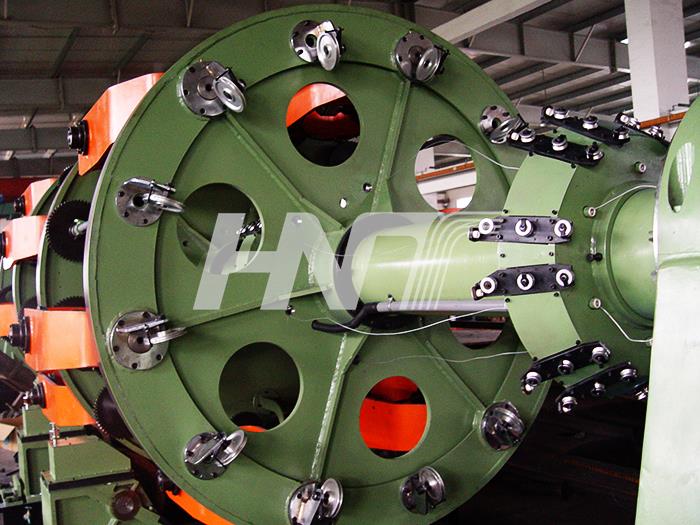

Steel Wire Armoring Machine
Application：
Steel Wire Armoring Machine, Steel Wire Armouring Machine, and Planetary Stranders are used to strand the single copper wire, steel wire, and big cross-section copper conductor, which can strand the max 96 wires in the same direction in one layer on the cable core. It is suitable for the wire arming process sheathed cable and insulation cable core to final cable, all dates can be set on the touch screen.
Main Technical Parameter:
No. | Items | Specification |
|
Single wire diameter | Copper 1.2~5.0 mm Aluminum 1.5~5.0 mm Steel wire 1.5~5.0 mm |
2. | Line speed | 3～30 m/min |
3. | Cage rotate speed | 10 ～60r /min |
4. | Cable pitch range(cable-forming) | 50～1800 mm |
5. | Taping head rotate speed range | 150 ～500 r./min |
6. | Taping head pitch range | Step less 5～300mm |
7. | Capstan pull force | 10000 N·f |
