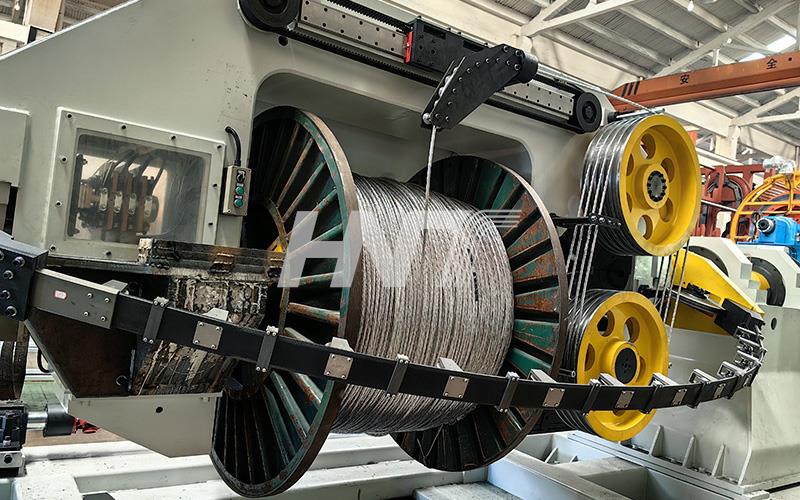

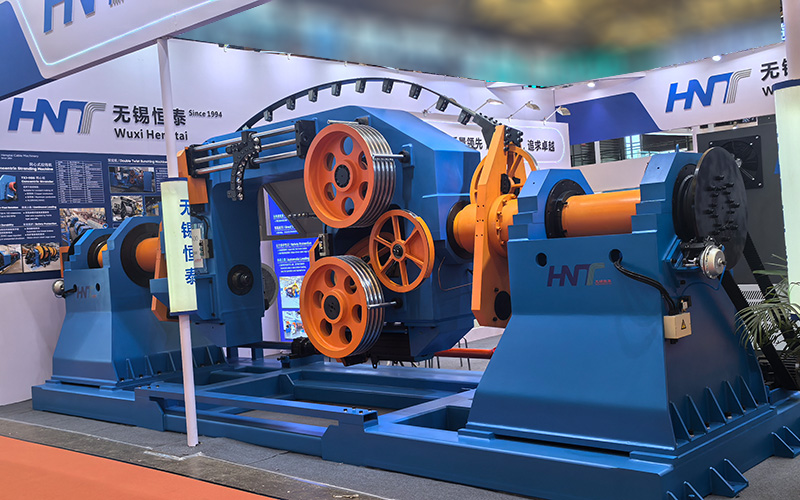

Double Twist Stranding | Laying-Up Machine
The Double Twist Stranding Machine is mainly used for concentric stranding of copper wires and PVC insulated cables or aluminum wires to form conductors or cables with 7-19-37 strands, mainly used for copper cross-sections of 16-185mm² and aluminum cross-sections of 16-240mm²
| Model | 1250 | 1600 | 1800 | 2000 |
| Diameter of AL, Cu Wire (mm) | φ1.0-3.0 | φ1.5-4.8 | φ1.5-4.8 | φ1.5-4.8 |
| Lay-up Cross-Section（mm²）（Category 5&6） | 3.5-70 | 16-240 | 16-240 | 16-240 |
| Layup Cross-section（mm²）（Category 1&6） | 3.5-50 | 16-50 | 16-50 | 16-50 |
| Copper Wire Bunching Cross-section （mm²) | 3.5-50 | 16-150 | 16-185 | 16-240 |
| Aluminum Wire Bunching Cross-section （mm²) | 3.5-70 | 16-240 | 16-240 | 16-240 |
| Max. Finished Cable Diameter(mm) | φ10 | φ25 | φ35 | φ35 |
| Compact Ratio | 85-90% | 85-90% | 85-90% | 85-90% |
| Max. Line Speed | 70-150 | 170-200 | 170-200 | 170-200 |
| Max. Wire Bunch Diameter (mm) | φ15 | φ25 | φ35 | φ35 |
| Max. Rotation Speed(RPM) | 800 | 600 | 500 | 400 |
| Stranding Pitch(mm) | 40-350 | 50-600 | 60-600 | 60-600 |

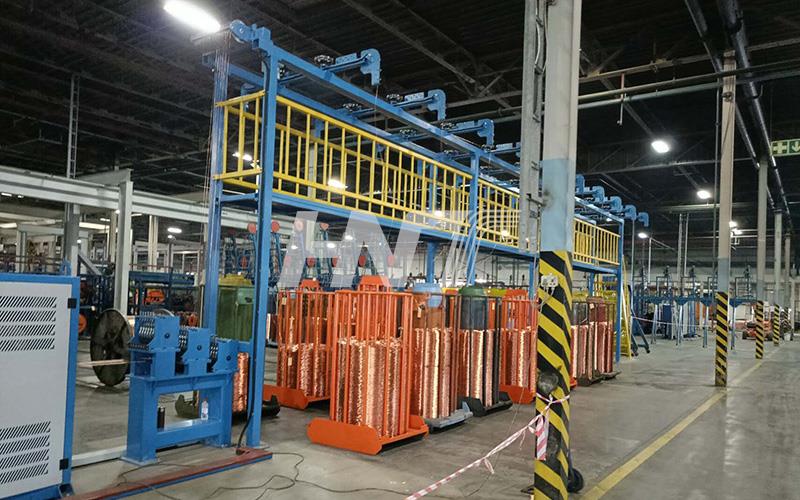

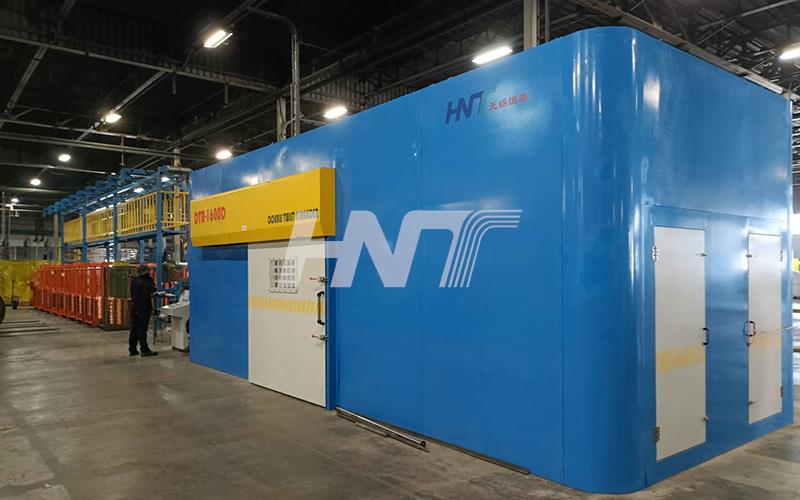

Machine Running Video In Customer's Plant:
