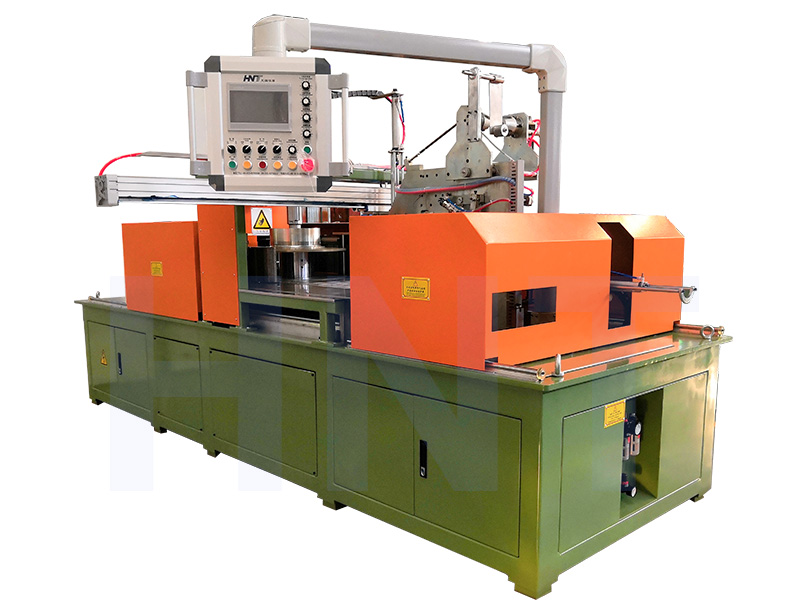

TP460 Auto Coiling & Wrapping Machine for Cable

cable-coiling-machine

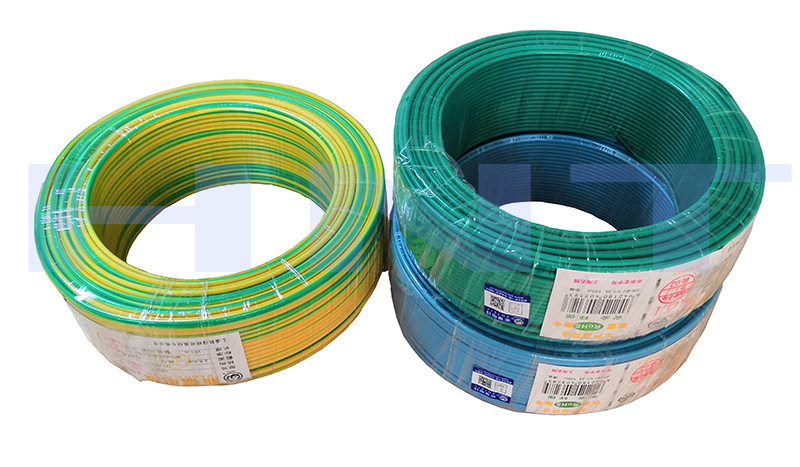

Cable Final Packing Samples:
Cable-Packing-Machines
Feature:

Wire will be coiled and packaged one by one, production with high speed.

It has auto adjust type coil-holding arm, without manual adjustments.

It's has auto labeling machine, which do not need label by manaul,more safe and convenience.

It can retrofit auto stacking system & auto pallet stacking system.

When problem come out, the machine can auto detect the mistaked, and send message to warn the operator.'it can save labour force, a,plify capacity, and advance industrial automation

Type

Width

O.D (MM)

I.D (MM)

Wire Dia. (mm)

Packing Material

Speed

TP460

60-100

240-460

170-220

4-12

PVC

2-2.6Coil/M

TP600

80-160

32-600

200-300

5-18

PVE

1.5- 2 Coil/M

Customer Feedback:
Customer Feedback

Customer:
Customer-list
