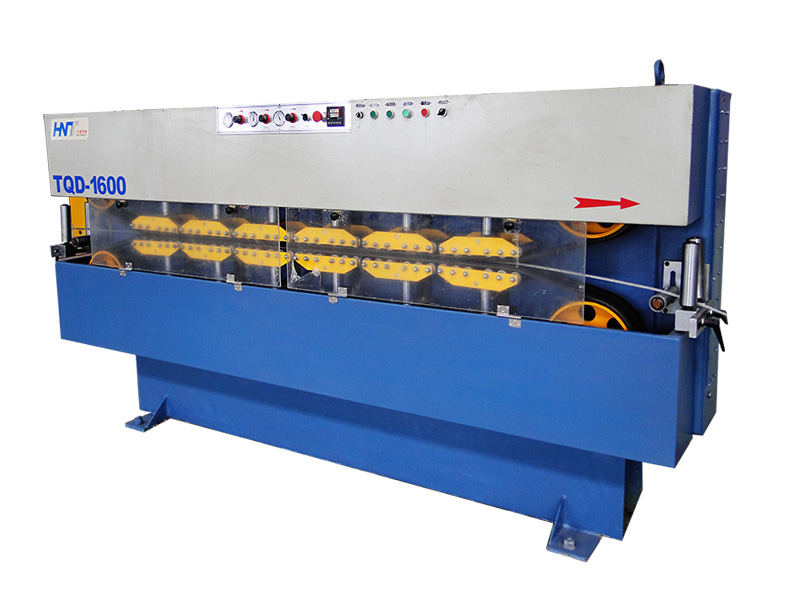

TQD-1600 Belt Caterpillar Capstan
Application:
Used in the cable production line, such as the extrusion lines, steel aromoring lines rewinding lines.
Belt material is rubber, no damage to the cable surface when running.
Drive by Penumatical.
Main Technical Date:
| Type | Max. Pulling Force | Applicable Cable Dia. | Contact Length | Belt Width | Cylinder Pairs | Max. Line Speed |
| TQD-200 | 200 | ≤φ15 | 250 | 60 | 1 | 200 |
| TQD-500 | 500 | ≤φ30 | 450 | 70 | 3 | 150 |
| TQD-800 | 800 | ≤φ40 | 1300 | 80 | 4 | 120 |
| TQD-1250 | 1250 | ≤φ60 | 1500 | 90 | 5 | 100 |
| TQD-1600 | 1600 | ≤φ80 | 1900 | 110 | 6 | 80 |
| TQD-2000 | 2000 | ≤φ100 | 2300 | 120 | 7 | 80 |
| TQD-2500 | 2500 | ≤φ120 | 2500 | 140 | 8 | 60 |
| TQD-3200 | 3200 | ≤φ150 | 2800 | 160 | 9 | 60 |
| TQD-4000 | 4000 | ≤φ180 | 3500 | 180 | 10 | 30 |
| TQD-5000 | 5000 | ≤φ200 | 4000 | 180 | 11 | 30 |
