Application:

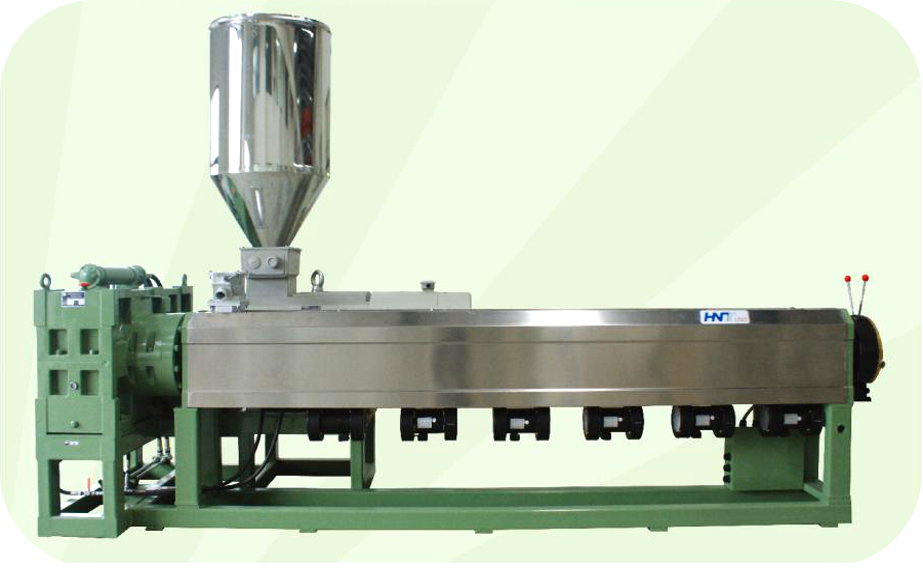

This machine use for cable extrude or insulation
High Plastic Extrusion Capacity:
Compare with same kind extrusion output increase 50%
Special Srew Design:
Special output flow path designed for melted plastic guarantee high quality of extrusion.
Screw is with arc spiral. The quality of extrusion is much more better than screw with other shape.
Hotting tuve technology has been used in screw design. It can strength cutting and also avoid decomposing by overheat. According the melting of plastic can be increased in order to obtain extrusion of plastic in high speed.

Screw Diameter	L/D	Motor Power	Extrude Capacity (PVC)	Extrude Capacity (PE)
30	25:1	5.5KW	25KG	15KG
45	25:1	15KW	80KG	45KG
65	26:1	30KW	160KW	90KW
80	26:1	75KW	260KG	165KG
90	26:1	90KW	360KG	210KG
120	26:1	132KW	620KG	380KG
150	25:1	200KW	900KG	550KG
200	25:1	280KW(315KW)	1300KG	750KG
