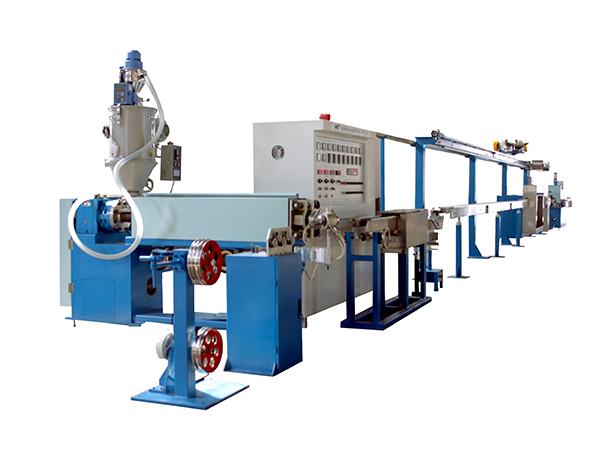

Building Wire Extrusion Line

Description:

This high speed building wire extrusion line uses PLC and touch screen to control. Each control cabinet controls the electric parts of the extruder unit and the caterpillar. The cabinet controls the temperature, line speed, screw rotational speed, extruder current, meter counter, etc. It will send alarm when it's overloaded. When change the speed of this building cable extrusion line, the PLC will set corresponding parameter automatically. In addition, three emergency stop switches are designed on the whole line (caterpillar, extruder and take-up stand).

Electric Control System:

This high speed building wire extrusion line uses PLC and touch screen to control. Each control cabinet controls the electric parts of the extruder unit and the caterpillar. The cabinet controls the temperature, line speed, screw rotational speed, extruder current, meter counter, etc. It will send alarm when it’s overloaded. When change the speed of this building cable extrusion line, the PLC will set corresponding parameter automatically. In addition, three emergency stop switches are designed on the whole line (caterpillar, extruder and take-up stand).

Main Electric Equipment:
AC controller: Mitsubishi
Tough screen : Siemens
Temperature controller: Japanese RKC
PLC : SIEMENS S7
Low-voltage electrical component: Schneider
Bearing: NSK
Customer Feedback:


Customer:
