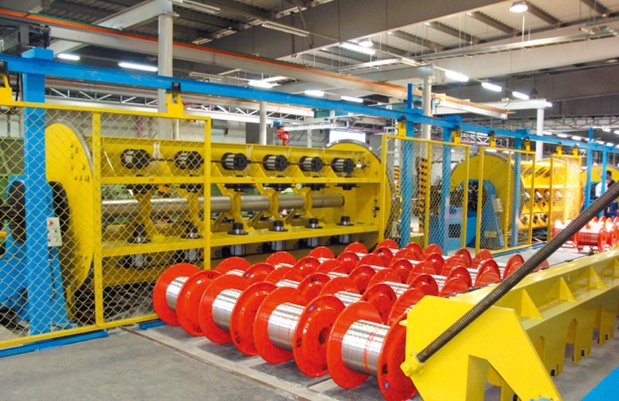

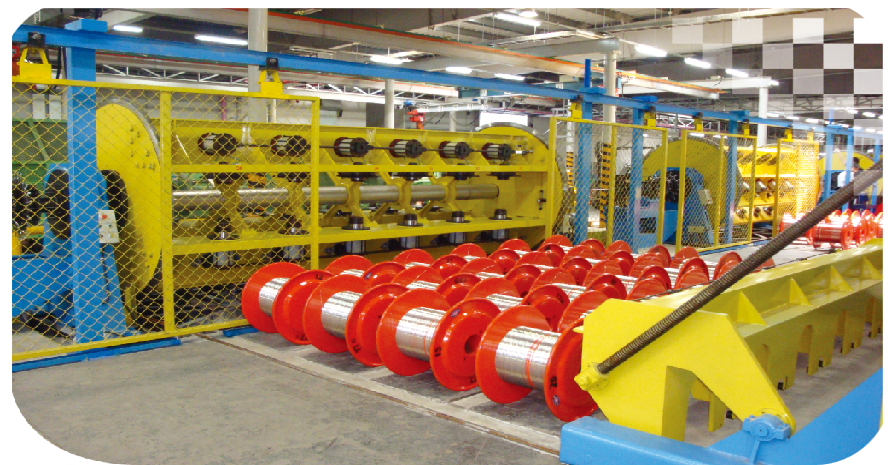

Rigid Frame Stranding Machine

Application
Our rigid frame stranding is specially designed to make copper and aluminum conductors as well as ACSR at high speed and excellent conductor surface for the high-voltage cables produced in continuous vulcanization.

Features:

1.Strong rigidity:
The cage and its flange are fabricated by 25mm and 45mm steel sheets respectively, enjoying steady structure. They are tempered and sandblasted to eliminate stress, and machined by CNC completely for high strength. Structure design and machining of the cage makes it suitable for working at high rotational speed.

2. High Rotational Speed of Cage:

3. Built-in position sensing system is designed to ensure the precision of loading bobbin.

The Built-in Position sensing system consists of position sensor and pneumatic unit. When loading/unloading, the signal of sensor will be transmitted to PLC, which will send command to the pneumatic position system and lock the cage.

4. This rigid frame strander is equipped with constant tension control system and intelligent brake system.

5. Converter control ensures successfully in one time.

6. This rigid frame stranding machine is equipped with motorized cover.

Technical Information:

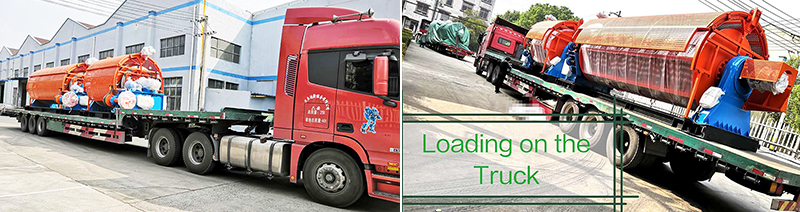

Shipment of Rigid Stranding Mahine:

Customer:
