Galvanized Steel Strand Wire

Product description

The product galvanized steel wire (GSW) is used for the cord of the ACSR (Aluminum Conductor Steel Reinforced) conductor.

Product details

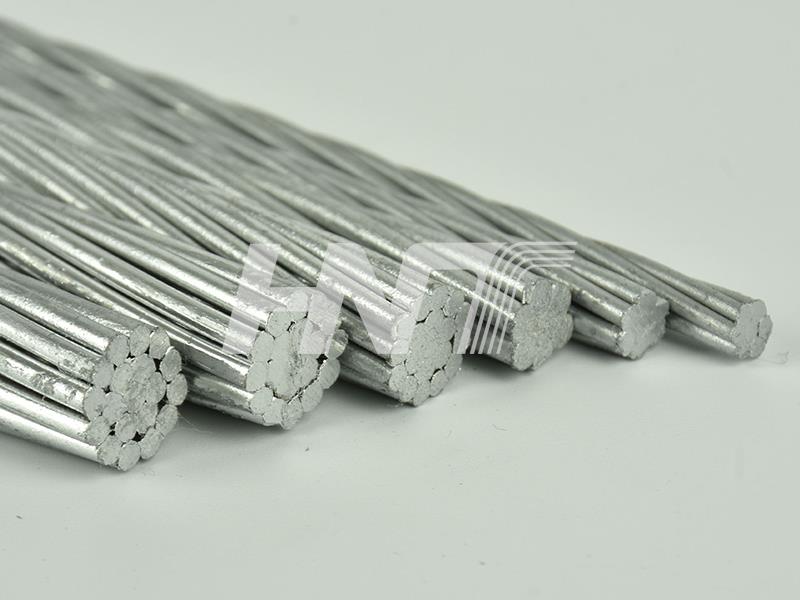

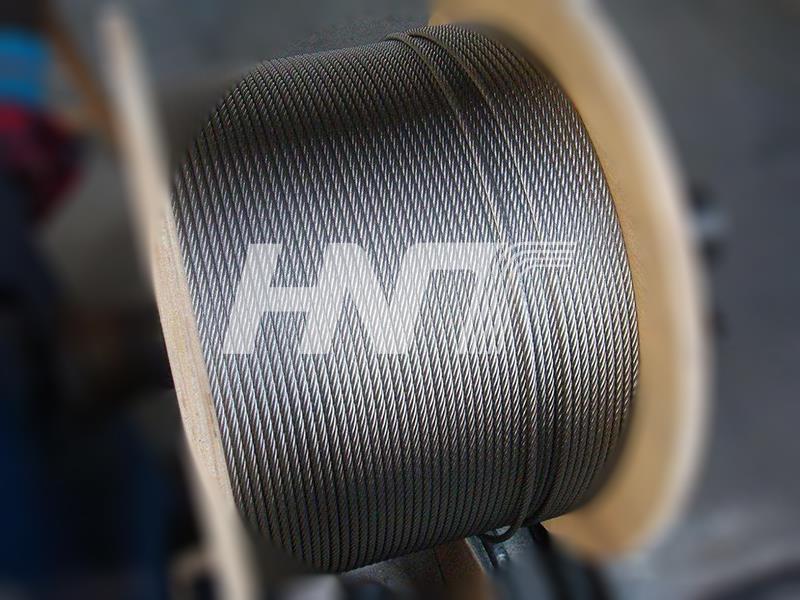

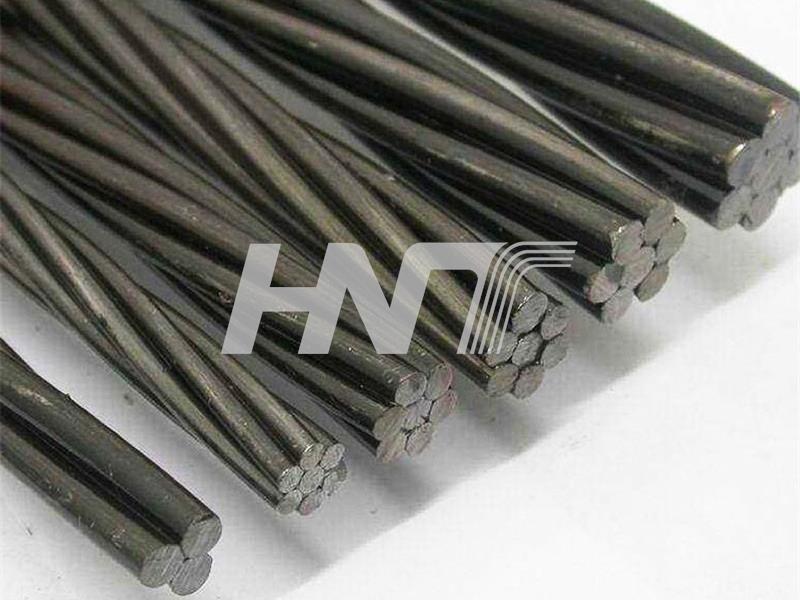

Galvanized Steel Strand Wire
Galvanized steel strands usually refer to messenger wires, ACSR core wires or strength members, etc., and can also be used as earth wires/ground wires for overhead power transmission, Barrier cables on both sides of roads, or structure cables in building structures.

Product Details:

Parameter Details:

	Diameter(mm)		Tensile Strength(Mpa)		Weight of Zinc(g/m2)
	1.24~2.25		1340~1620		185~215
	2.25~3.00		1310~1590		230
	3.00~3.50		1290~1550		245
	3.50~4.25		1290~1520		260
	4.25~4.75		1290~1520		275
	4.75~5.50		1290~1520		290
Intensity Level	Wire Diameter	Min. Tensile	Min. Stress With 1%	Min. Extension	Min. Number of 360°	Diameter of Testing
		Strength	Extension	Percentage When L=250	twists	Mandril
	mm	mpa	mpa	%		multiple
	>1.24~2.25	1340	1170	3.0	16	1
	>2.25~2.75	1310	1140	3.0	16	1
	>2.75~3.00	1310	1140	3.5	16	1
General	>3.00~3.50	1290	1100	3.5	14	1
	>3.50~4.25	1290	1100	4.0	12	1
	>4.25~4.75	1290	1100	4.0	12	1
	>4.75~5.50	1290	1100	4.0	12	1
	>1.24~2.25	1450	1310	2.5	16	3
	>2.25~2.75	1410	1280	2.5	16	3
	>2.75~3.00	1410	1280	3.0	16	4
High	>3.00~3.50	1410	1240	3.0	14	4
	>3.50~4.25	1380	1170	3.0	12	4
	>4.25~4.75	1380	1170	3.0	12	4
	>4.75~5.50	1380	1170	3.0	12	4
	>1.24~2.25	1620	1450	2.0	14	4
	>2.25~2.75	1590	1410	2.0	14	4
	>2.75~3.00	1590	1410	2.5	12	5
Very High	>3.00~3.50	1550	1380	2.5	12	5
	>3.50~4.25	1520	1340	2.5	10	5
	>4.25~4.75	1520	1340	2.5	10	5
	>4.75~5.50	1520	1270	2.5	10	5

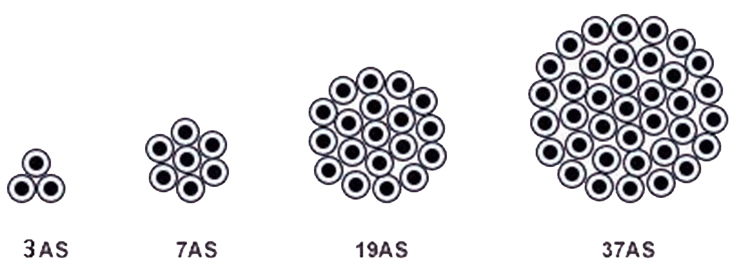

Number of Wires	Approx. Strand Dia.		Siemens	High	Extra High	Approx. Weight
Dia.			Martin Grade	Strength Grade	Strength Grade
	Inch	mm	kN	kN	kN
3/2.64	7/32	5.56	10.409	15.569	21.796	131
3/3.05	1/4	6.35	13.523	21.040	29.981	174
3/3.05	1/4	6.35	-	-	-	174
3/3.30	9/32	7.14	15.035	23.398	33.362	204
3/3.68	5/16	7.94	18.193	28.246	40.479	256
3/4.19	3/8	9.52	24.732	37.187	52.489	328
7/1.04	1/8	3.18	4.048	5.916	8.140	49
7/1.32	5/32	3.97	6.539	9.519	13.078	76
7/1.57	3/16	4.76	8.452	12.677	17.748	108
7/1.65	3/16	4.76	-	-	-	118
7/1.83	7/32	5.56	11.387	17.126	24.020	145
7/2.03	1/4	6.35	14.012	21.129	29.581	181
7/2.36	9/32	7.14	18.905	28.469	39.812	243
7/2.64	5/16	7.94	23.798	35.586	49.820	305
7/2.77	5/16	7.94	-	-	-	335
7/3.05	3/8	9.52	30.915	48.040	68.503	407
7/3.68	7/16	11.11	41.591	64.499	92.523	594
7/4.19	1/2	12.70	53.823	83.627	119.657	768
7/4.78	9/16	14.29	69.837	108.981	155.688	991
7/5.26	5/8	15.88	84.961	131.667	188.605	1211
19/2.54	1/2	12.70	56.492	84.961	118.768	751
19/2.87	9/16	12.49	71.616	107.202	149.905	948
19/3.18	5/8	15.88	80.513	124.995	178.819	1184
19/3.81	3/4	19.05	116.543	181.487	259.331	1719
19/4.50	7/8	22.22	159.691	248.211	354.523	2352
19/5.08	1	25.40	209.066	325.610	464.839	2384
37/3.63	1	25.40	205.508	319.827	456.832	3061
37/4.09	11/8	28.58	262.000	407.457	581.827	4006
37/4.55	11/4	31.75	324.720	505.318	721.502	4833

									BS 183:1972
Number of	Approx.			Minimum Breaking Load of Strand					Approx. Weight
Wires/Dia.	Strand Dia	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300
	mm	kN	kN	kN	kN	kN	kN	kN	kg/km
3/1.80	3.9	2.65	3.66	-	-	-	-	-	60
3/2.65	5.7	5.80	7.95	-	-	-	-	-	130
3/3.25	7.0	8.70	11.95	-	-	-	-	-	195
3/4.00	8.6	13.20	18.10	-	-	-	-	-	295
4/1.80	4.4	3.55	4.90	-	-	-	-	-	80
4/2.65	6.4	7.70	10.60	-	-	-	-	-	172
4/3.25	7.9	11.60	15.90	-	-	-	-	-	260
4/4.00	9.7	17.60	24.10	35.20	-	-	-	-	390
5/1.50	4.1	3.10	4.24	6.18	-	-	-	-	69
5/1.80	4.9	4.45	6.10	8.90	-	-	-	-	95
5/2.65	7.2	9.65	13.25	19.30	-	-	-	-	220
5/3.25	8.8	14.50	19.90	29.00	-	-	-	-	320
5/4.00	10.8	22.00	30.15	43.95	-	-	-	-	490
7/0.56	1.7	0.60	0.83	1.20	-	1.70	1.98	2.24	14
7/0.71	2.1	0.97	1.33	1.94	-	2.75	3.19	3.60	28
7/0.85	2.6	1.39	1.90	2.80	-	3.95	4.57	5.15	31
7/0.90	2.7	1.55	2.14	3.1	-	4.45	5.12	5.80	35
7/1.00	3.0	1.92	2.64	3.85	-	5.50	6.32	7.15	43
7/1.25	3.8	3.01	4.10	6.00	-	8.55	9.88	11.15	67
7/1.40	4.2	3.75	5.17	7.54	9.16	10.75	12.35	14.00	84
7/RS*	4.3	3.85	5.28	7.70	9.35	11.00	12.65	14.30	86
7/1.60	4.8	4.90	6.75	9.85	11.95	14.10	16.20	18.30	110
7/1.80	5.4	6.23	8.55	12.45	-	17.80	20.50	23.20	140
7/2.00	6.0	7.70	10.55	15.40	-	22.00	25.30	28.60	170
7/2.36	7.1	10.70	14.70	21.40	-	30.60	35.20	39.80	240
7/2.65	8.0	13.50	18.50	27.00	-	38.60	44.40	50.20	300
7/3.00	9.0	17.30	23.75	34.65	-	49.50	56.90	64.30	392
7/3.15	9.5	19.10	26.20	38.20	-	54.55	62.75	70.90	430
7/3.25	9.8	20.30	27.85	40.65	-	58.05	66.80	75.50	460
7/3.65	11.0	25.60	35.15	51.25	-	73.25	84.20	95.20	570
7/4.00	12.0	30.90	42.20	61.60	-	88.00	101.0	114.00	690
7/4.25	12.8	34.75	47.65	69.50	-	99.30	114.0	129.00	780
7/4.75	14.0	43.40	59.45	86.80	-	124.0	142.7	161.3	970
19/1.00	5.0	5.22	7.16	10.45	-	14.92	17.16	19.40	120
19/1.25	63	8.16	11.19	16.32	-	23.32	26.81	30.31	180
19/1.40	7.0	10.24	14.04	20.47	-	29.25	33.64	38.02	230
19/1.60	8.0	13.37	18.35	26.75	-	38.20	43.93	49.66	300
19/2.00	10.0	20.90	28.65	41.78	50.74	59.69	68.64	77.60	470
19/2.50	12.5	32.65	44.80	65.29	79.28	93.27	107.3	121.3	730
19/3.00	15.0	47.00	64.50	94.00	114.1	134.3	154.5	174.6	1050
19/3.55	17.8	65.80	90.27	131.6	159.9	188.0	216.3	244.5	1470
19/4.00	20.0	83.55	114.6	167.1	203.0	238.7	274.6	310.4	1870
19/4.75	23.8	117.85	161.6	235.7	286.0	336.7	387.2	437.7	2630

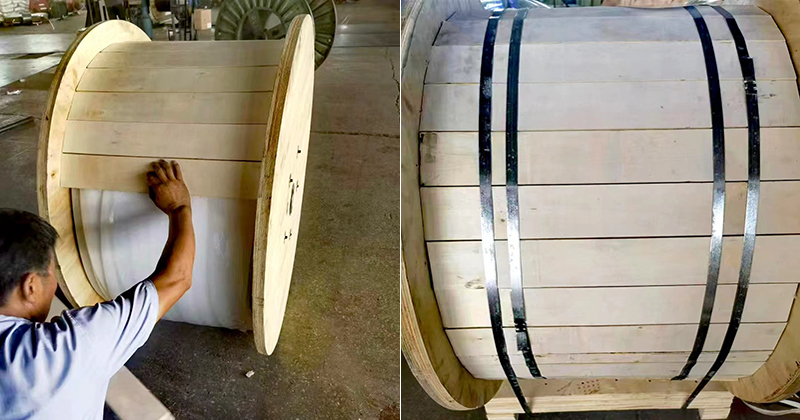

Packing:

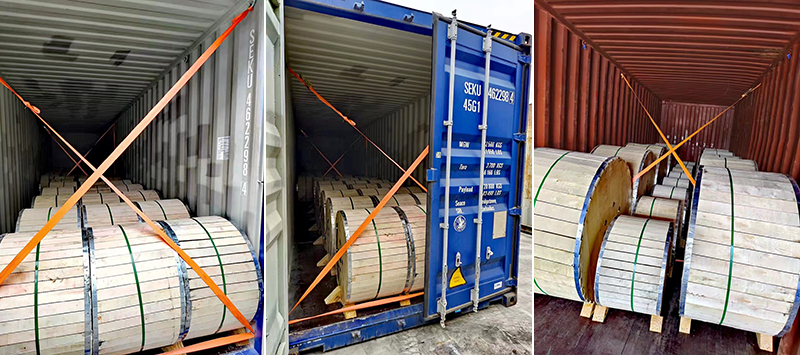

Shipping:
