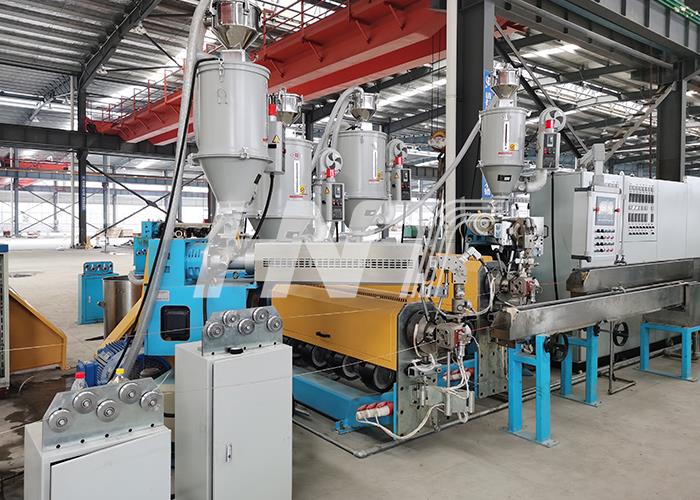

High Speed Wire Extrusion Production Line

Product details

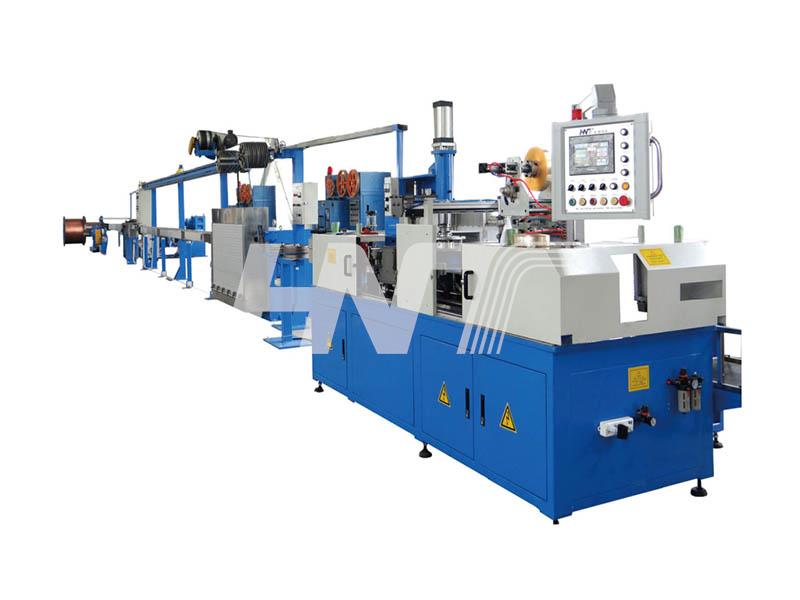

High Speed Wire Extrusion Production Line

Feature:
1. The barrel&screw with high output.
2. According to the extrusion material, choose the match special barrel & screw such as PVC,PE,LSNH,Teflon,Nylon etc.
3. Tem-control use Japanese RKC series tem-controller &solidity repay(SSR).
4. Hopper dryer& Auto-suction device use imported famous Brand.
5. The extrusion crosshead can be selected from ceter-adjusted or adjustless, with strip color, skin color and double layer extrusion function.
6. There are several types of cable take-up, such as automatic dual take-up, standard takeup, automatic cable coiling and wrapping, or robot palletizing systems.

7. According to different take-up, the line speed of different, Max. is 1000m/min.

Technical Information:

Type	Screw Date			Extrude Capacity (Kg/Hr Max)			Out Dia.	Motor
	Dia.	L/D	Speed	PVC	LDPE	LSNH
EX-40G	40mm	26:1	120RPM	24	14		0.8-3mm	11KW
EX-50G	50mm	26:1	120RPM	60	35		1-6mm	15KW
EX-60G	60mm	26:1	120RPM	100	60	22	2-8mm	22KW
EX-70G	70mm	26:1	120RPM	160	130	36	3-15mm	30KW
EX-80G	80mm	26:1	110RPM	220	180	48	5-20mm	37KW
EX-90G	90mm	26:1	100RPM	310	240	65	8-25mm	55KW
EX-100G	100mm	25:1	90RPM	400		90	10-30mm	55KW
EX-120G	120mm	25:1	90RPM	550			15-40mm	90KW
EX-150G	150mm	25:1	60RPM	900	550			200KW
EX-200G	200mm	25:1	60RPM	1300	1100	750		280(315)KW

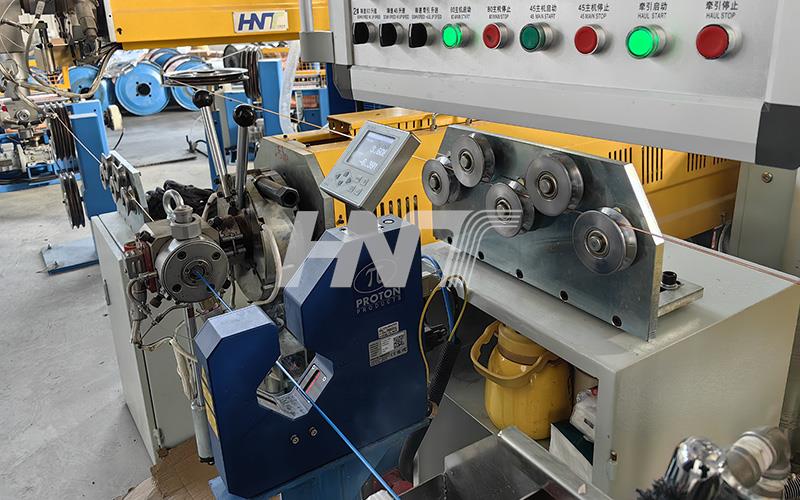

Extrusion Function:

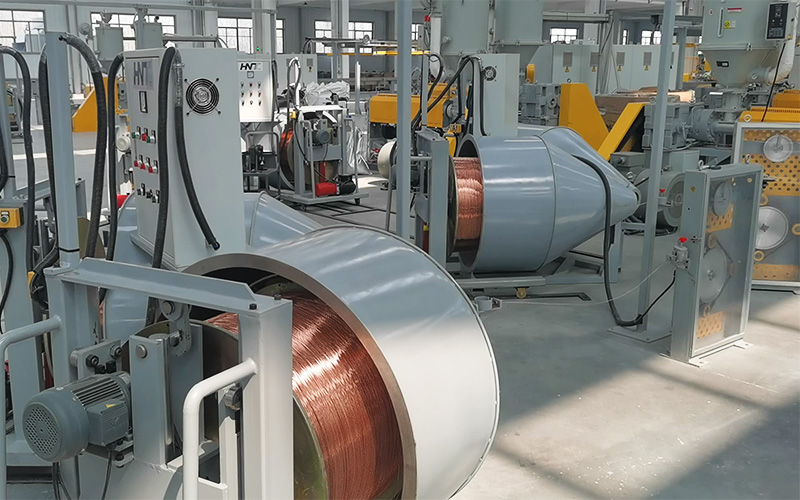

Line Takeup Method:

Customer Feedback:
