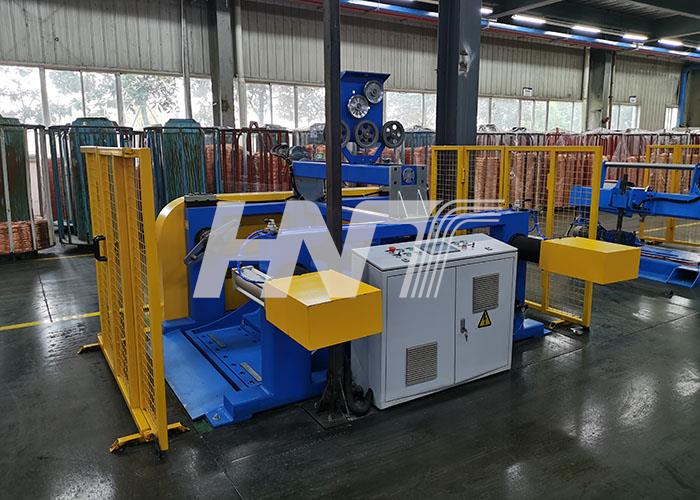

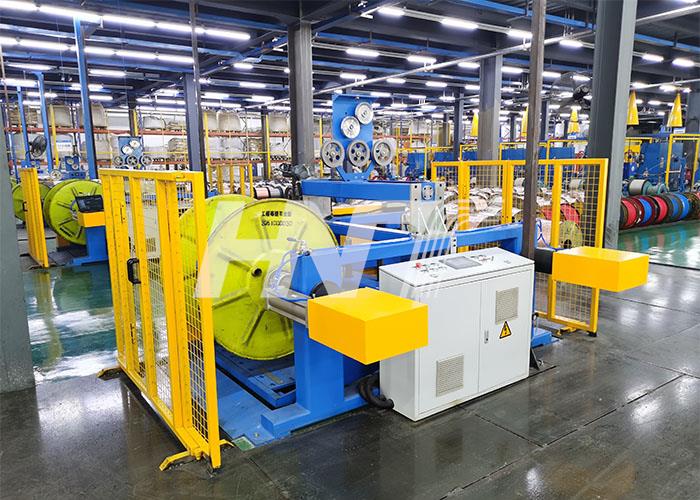

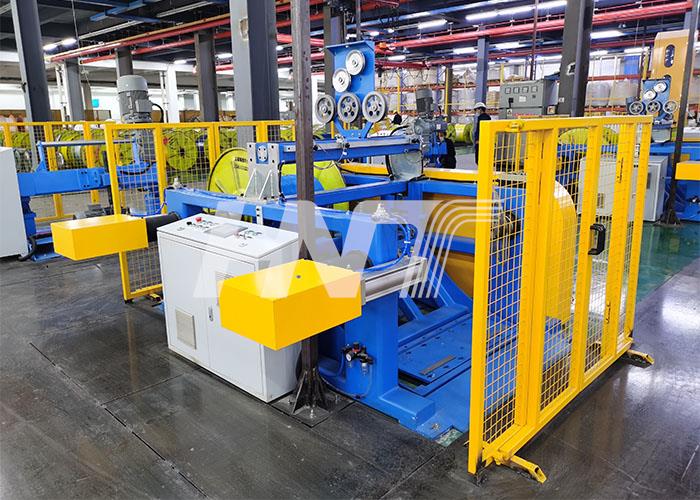

1250 Double Reel Motorized Payoff

φ1250mm Double Reel Motorized Payoff:

1. Machine type: Shaftless power supply payoff (Double reel);
2. Application Bobbin Outer Dia.:φ630-1250mm;
3. Structure: the pintle table is dixed, can not be moved from left and right;
4. Lifting Method: Electric lifting;
5. Pintle Clamping type: by pneumatic;
6. Power: 15KW*4P AC Motor +Frequency converter +Reducer;
7. Brake: Pneumatic brake;

Single Pay-off Specification

Model

Inner diameter (mm)

Outer diameter (mm)

Max load (kg)

PF-1000M

630 - 1000

300 - 750

1500

PF-1250M

800 - 1250

450 - 950

2500

PF-1600M

1000 - 1600

600 - 1200

4000

Double Reel Pay-off Specification

Model

Inner diameter (mm)

Outer diameter (mm)

Max load (kg)

PFS-630M

400 - 630

300 - 475

600

PFS-800M

630 - 800

475 - 600

1000

PFS-1000M

800 - 1000

600 - 750

1500

PFS-1250M

1000 - 1250

750 - 950

2500
