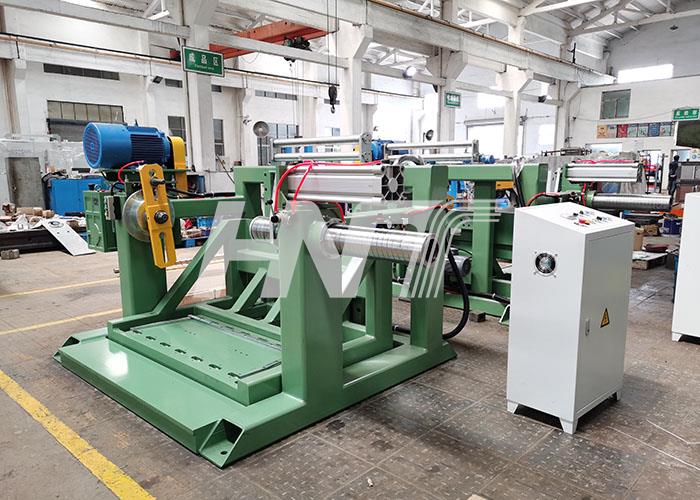

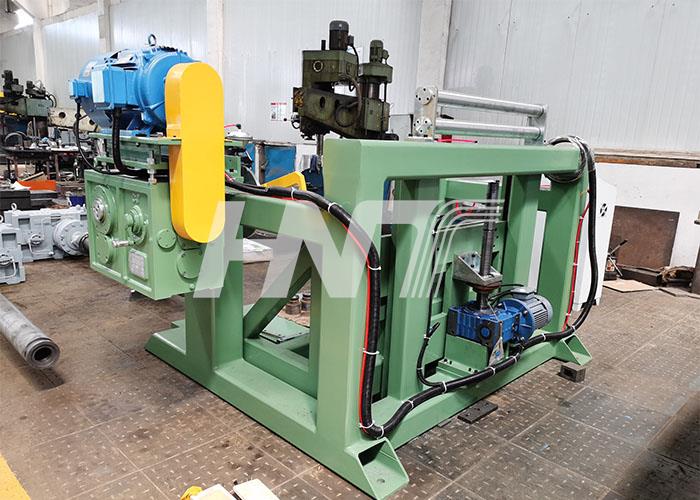

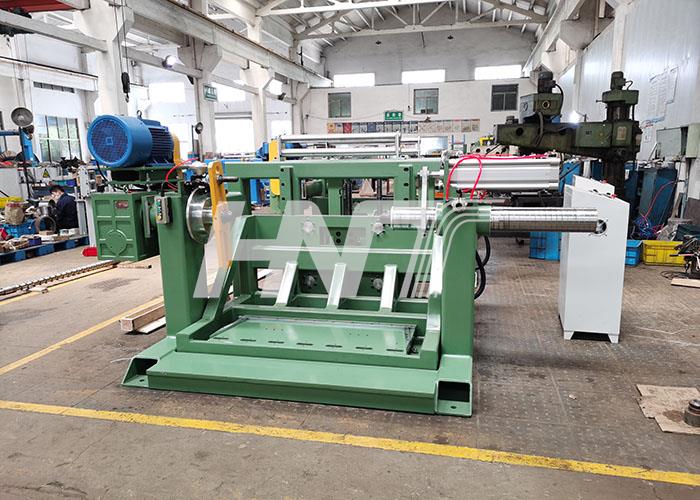

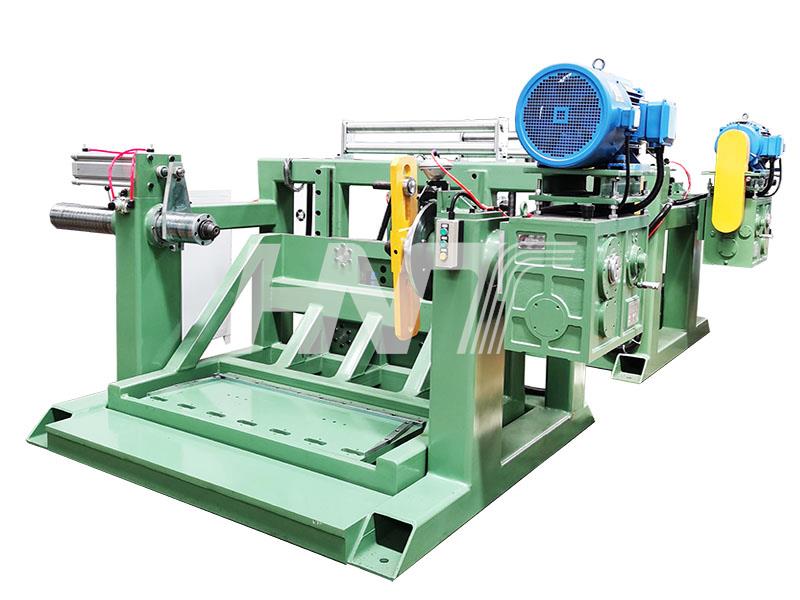

800/1600 Cantilever Motorized Payoff
800/1600 Cantilever Driven Pay-off application for wire and cable, optical cable production equipment. Machine with a separate control unit, which can be a self-contained system, it also can be used in the cable production line and can be widely used in steel wire, copper wire pay-off and other reinforcing parts pay-off. Its characteristics are light structure, scientific and reasonable design, simple operation, convenient maintenance, stable and reliable operation.
Main Technical Parameter:
Model | 800/1600 |
Bobbin Width range (mm) | 800-1600 |
Application Bobbin width | 600-1180 |
Application bobbin weight (T) | 4 |
Max. Payoff Speed | 250m/min |
Single Wire Tension | 50-3000N |
Payoff Motor | YVP180M-4-B3 18.5Kw |
Pay-off gearbox | BSYK170(10.56\22.04\44.86) |
Lifting Motor | Y100L-4-3kw-B5 |
Lifting reducer | RV110-60-3kw |
Air pressure disc brake | DBG204 |
Dimensions | 3600×2020×1800 |
