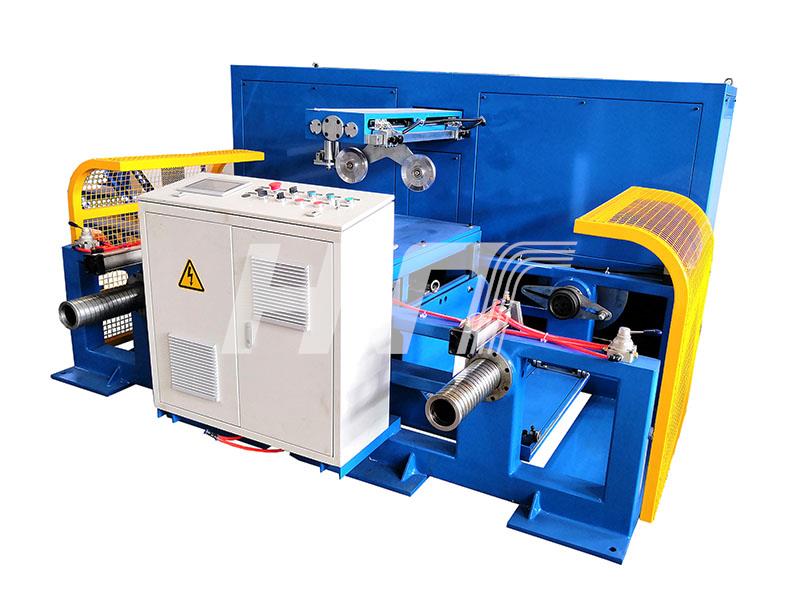

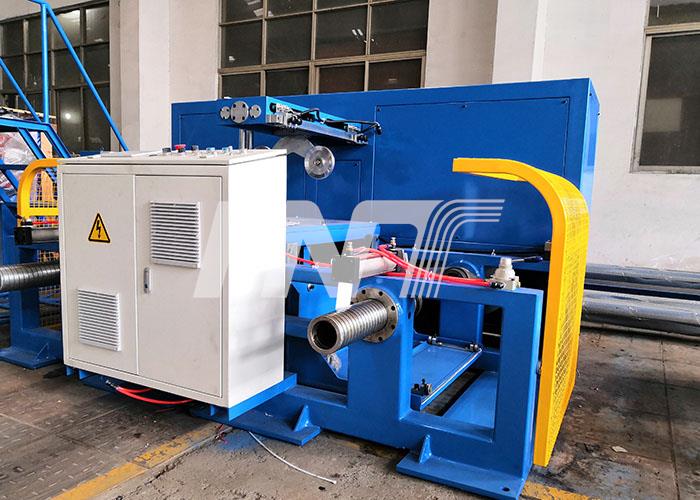

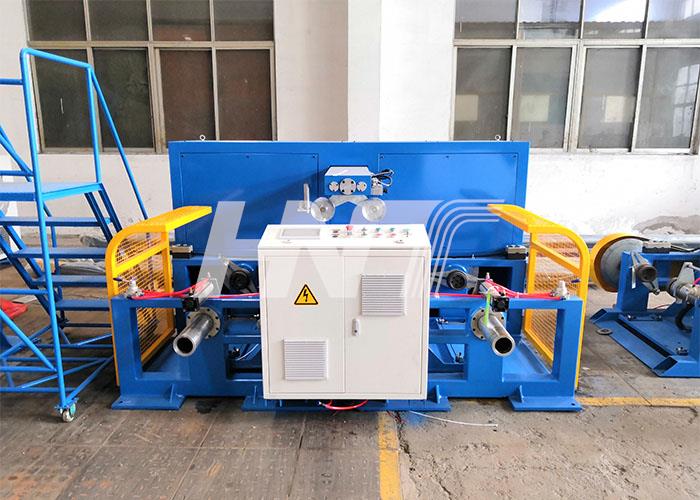

φ800mm Shaftless Double Reel Take Up:
1. Power transmission: double motor drive;
2. Lifting: 1.1KW Electric lift;
3. Traversing:motor, screw Rod traversing wire, row spacing, manually adjust, synchronized with the reel;
4. Counts the forecast function and the meter to automatically shut down, manually exclude waste;
5. Line control; Optional spark alarm shut down with no downtime;
Single Pay-off Specification
Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
PF-1000M | 630 - 1000 | 300 - 750 | 1500 |
PF-1250M | 800 - 1250 | 450 - 950 | 2500 |
PF-1600M | 1000 - 1600 | 600 - 1200 | 4000 |
Double Reel Pay-off Specification
| Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
PFS-630M | 400 - 630 | 300 - 475 | 600 |
PFS-800M | 630 - 800 | 475 - 600 | 1000 |
PFS-1000M | 800 - 1000 | 600 - 750 | 1500 |
PFS-1250M | 1000 - 1250 | 750 - 950 | 2500 |
