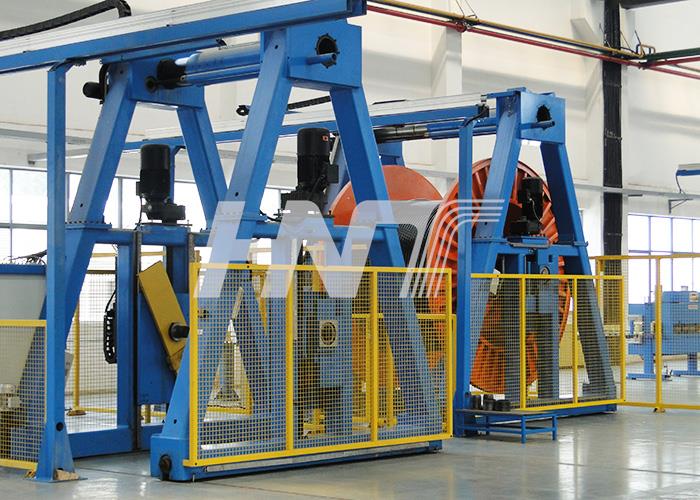

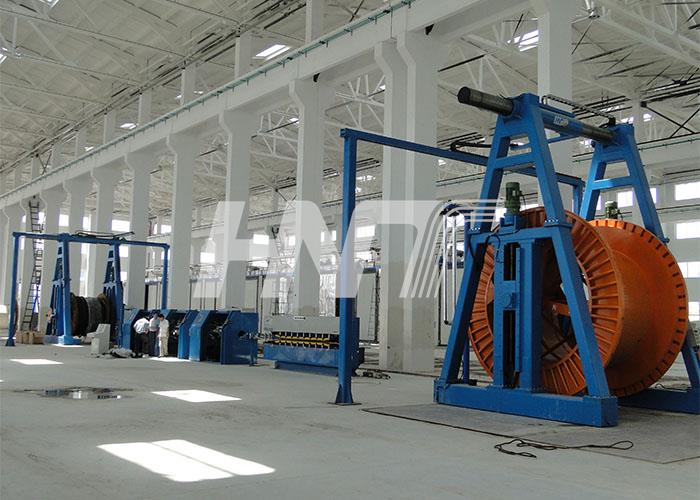

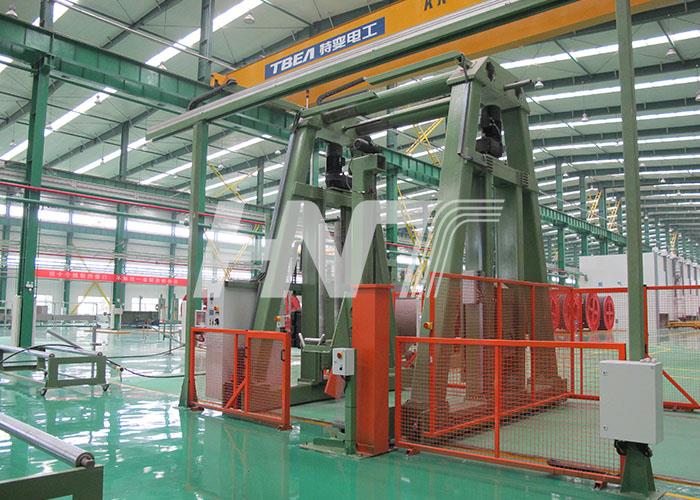

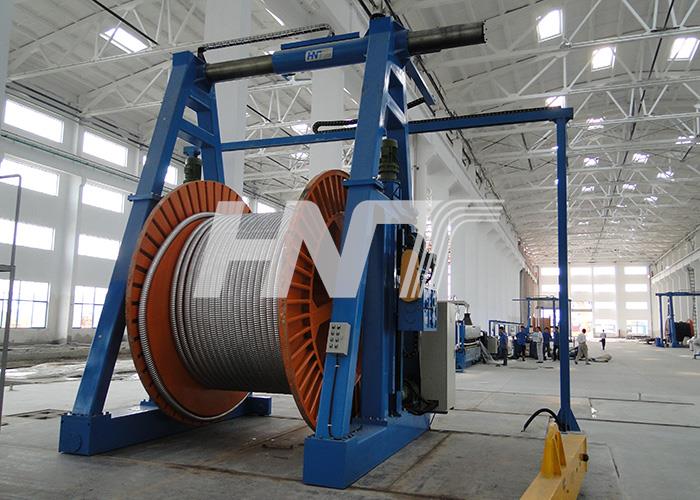

A Type Payoff | Take up
The Take-up is the AC motor drive the gearbox to drive bobbin, and the gearbox is infinitely variable; Siemens 200 PLC+ imported Siemens governor is used to control the motor operation. The traverse pitch and bobbin information can be input in the control panel,PLC control with coil diameter calculation function can automatically control the tension and reverse direction. The traverse is driven by the motor to reduce the gear box and the guide wheel, to control the pitch of the traverse, and the gear box is directly connected to the traverse shaft;
2 method of the take-up control: torque control and speed control which can be manually switched.
Brake: with pneumatic butterfly brake, solenoid valve control.
Technical Parameter:
| Type | TUA25 | TUA32 | TUA36 | TUA42 | TUA50 |
Reel Dia. | 1250/2500 | 1600/3200 | 2000/3600 | 2500/4200 | 2500/5000 |
Max. Flange Dia.(mm) | 2500 | 3200 | 3600 | 4200 | 5000 |
Min Flange Dia.(mm) | 1250 | 1600 | 2000 | 2500 | 2500 |
Min Overall Width(mm) | 900 | 1180 | 1500 | 1900 | 1900 |
Max. Overall Width(mm) | 1900 | 2120 | 2300 | 2400 | 2500 |
Min. Barrel Dia.(mm) | 500 | 800 | 2500 | 2800 | 3000 |
Bore(mm) | 80(100-125) | 80(100-125) | 200 | 200 | 200 |
Min. Wire Dia. (mm) | 7 | 8 | 20 | 30 | 40 |
Max. Wire Dia.(mm) | 70 | 120 | 140 | 160 | 180 |
Max. Rotation Speed(RPM) | 7/17/37 | 7/17/37 | 6/12/22 | 6/12/22 | 6/12/22 |
Traverse range(mm) | 8-90 | 9-120 | 20-140 | 30-160 | 40-180 |
Max. Reel Weight(KG) | 12000 | 18000 | 25000 | 30000 | 40000 |
