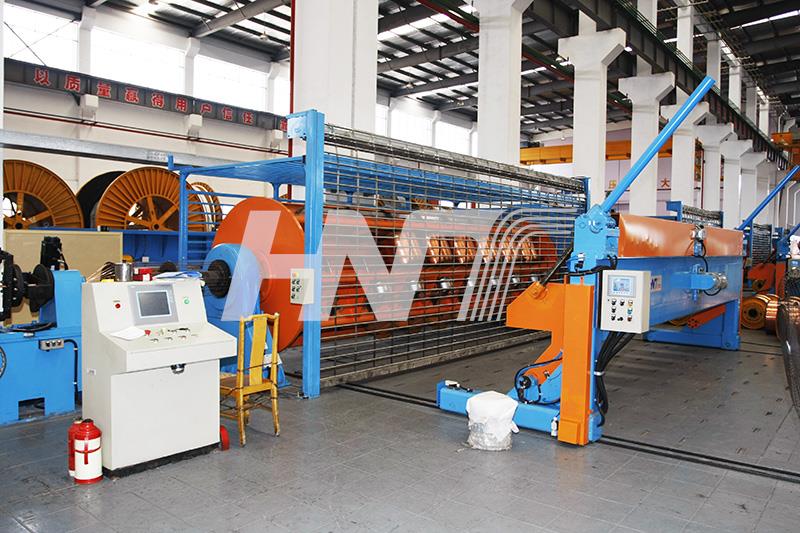

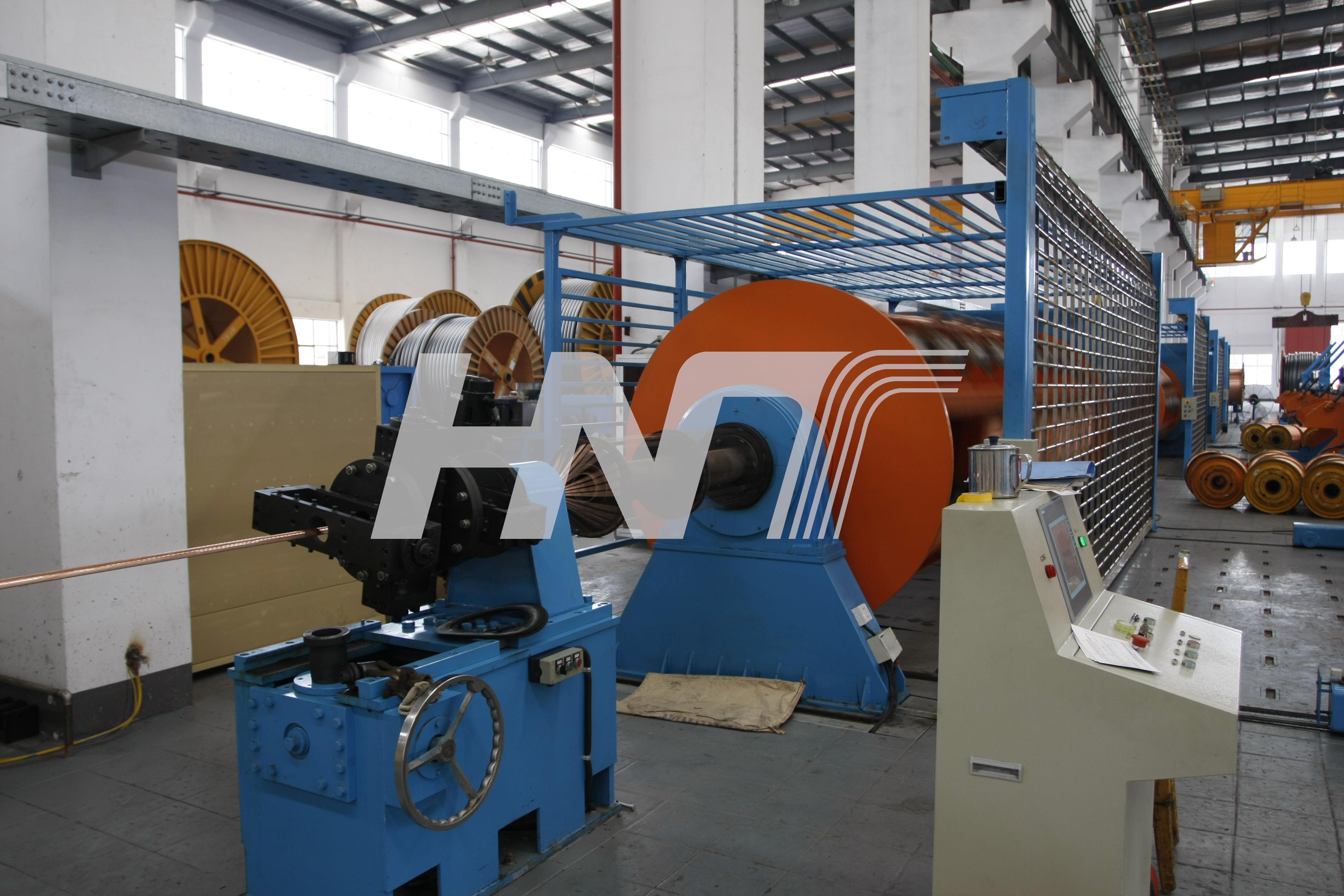

630 Rigid Stranding Machine

630 Rigid Stranding Machine:

Main Technical Parameter:

1. Each cage is driven by separate motor, stranding pitch can be adjusted by Touch screen;

2. Application: This machine can run stranding and armouring process;

3. Application Type of wire: Copper, Aluminium, tinning copper and steel wire;

4. Loading/Unloading: Bottom or Side loading;

5. Wire Tension Control: Electrical control system by Electronic drive with valve.

6. This equipment is used for twisting and pressing of sector conductors, twisting and pressing of round conductors, etc.

Main Technical Date:

Machine Model	JLK-630	JLK-710
Single Copper Wire Dia.	Φ1.7～Φ4.5mm	Φ1.7～Φ4.5mm
Single Alumium Wire Dia.	Φ1.8～Φ5.0mm	Φ1.8～Φ5.0mm
Single Alumium Alloy Wire Dia.	Φ1.7～Φ4.5mm	Φ1.7～Φ4.5mm
Max. stranded wire dia.	Φ30-55mm	Φ30-55mm
Lay length	40～350mm(step-less adjust)	40～350mm(step-less adjust)
Max rotate speed	500rpm	500rpm
Max line speed	100m/min	100m/min
Max rewinding speed	150～200m/min	150～200m/min
Pay off in Cage	630	710
Centre Payoff	PND630/1600	PND630/1600
Dual Wheel Capstan	2000mm, 2500mm	2000mm, 2500mm
Cage rotate motor	Siemens AC Motor	Siemens AC Motor
Stranding Cage Structure	6B, 12B, 18B, 24B, 30B, 36B	6B, 12B, 18B, 24B, 30B, 36B
Loading Method	Side loading or Bottom loading	Side loading or Bottom loading
